ILB CP10 HE SD RJ - High-Efficiency Self-Diagnostic LED Emergency Driver

The ILB-CP10-HE-SD from IOTA Engineering is a UL Listed, self-diagnostic LED emergency driver designed to deliver reliable, high-efficiency emergency illumination for LED fixtures. This constant power driver allows the same fixture to operate in both normal and emergency modes, automatically switching to emergency operation for 90 minutes during a power failure. The integrated self-diagnostic circuitry performs automatic monthly 30-second and annual 90-minute tests, ensuring proper emergency function and compliance with Life Safety Code requirements. Certified in the California Title 20 Appliance Efficiency Database, this driver provides energy-efficient, code-compliant emergency lighting for commercial and industrial applications.

Engineered for versatile installation, the ILB-CP10-HE-SD maintains a consistent 10-watt output across a 10–60 VDC range, supporting LED arrays with currents from 160 mA to 1,000 mA. Its robust construction includes a high-temperature Ni-Cad battery, charger, and converter circuitry within a single enclosure. Multiple mounting configurations are available to accommodate dual flex conduit, top mount, integral non-flex, or reflector applications. Ideal for offices, healthcare facilities, schools, retail environments, and industrial spaces, this driver combines high efficiency, reliability, and minimal maintenance with advanced self-testing capabilities.

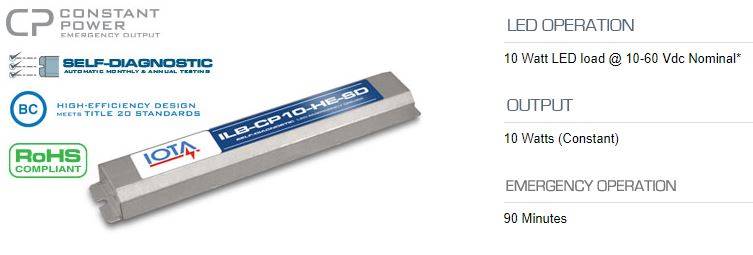

• Constant 10-Watt Power Output
  Maintains consistent illumination across 10–60 VDC even as system voltage varies.

• Self-Diagnostic Functionality
  Automatically performs monthly 30-second and annual 90-minute tests to verify emergency readiness.

• 90-Minute Emergency Operation
  Automatically powers LED fixtures during outages for code-compliant egress lighting.

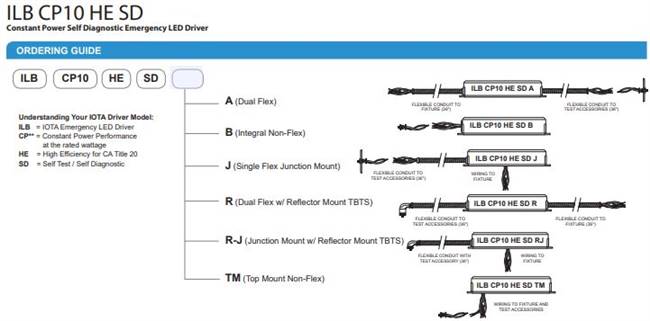

• Multiple Mounting Configurations
  Supports dual flex conduit, top mount, integral non-flex, or reflector mount installations.

• High-Efficiency and Compliance
  Certified in California Title 20, UL Listed, Class 2, and suitable for dry/damp locations.
