eldoLED SOLOdrive 1060/A Constant Current LED Driver
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 0.1%

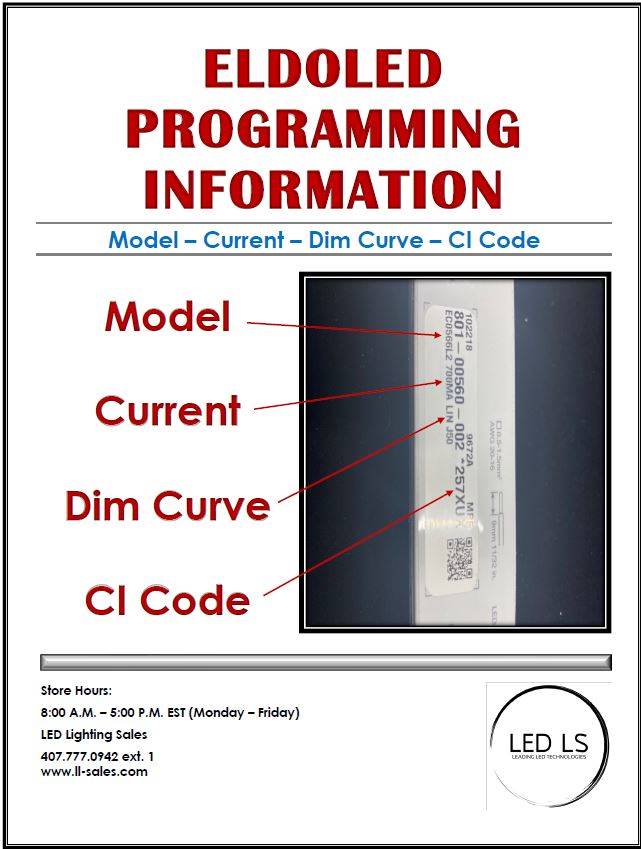

Click on image above to locate CI Code
Free shipping on orders over $350.

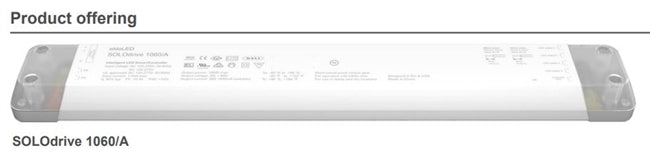

eldoLED SOLOdrive 1060/A Constant Current LED Driver
Description
Description
The eldoLED SOLOdrive 1060/A is a 100-Watt professional-grade constant current LED driver designed for precise DALI lighting control applications. With four independently controllable LED outputs and a single control channel, this driver delivers flicker-free dimming down to 0.1% using proven Hybrid HydraDrive technology. Ideal for architectural lighting, commercial installations, TV studios, or security camera environments, the SOLOdrive 1060/A ensures smooth, consistent lighting performance for a wide range of dynamic applications. Its long metal form factor with a plastic end-cover and side-feed layout allows for easy installation in compact enclosures.
Equipped with LEDcode technology, the SOLOdrive 1060/A is compatible with most constant current LED modules and arrays, while providing a connection point for integrated peripheral controls. The built-in NTC thermal interface offers robust thermal management, enhancing reliability and extending service life. Programmable output currents from 200–1,500mA and up to 57V per channel allow for fully customized operation, ensuring the driver meets the specific requirements of each project before shipping.
-
Flicker-Free Dimming: Hybrid HydraDrive technology delivers smooth, high-performance dimming down to 0.1% for each fixture.
-
Multi-Channel Control: Four independently controllable outputs provide flexible distribution for small or medium LED arrays.
-
Programmable Output: Configurable current range from 200–1,500mA and up to 57V per channel ensures compatibility with most LED modules.
-
Thermal Protection: NTC interface ensures safe operation and longevity under varied thermal conditions.
-
Compact and Installation-Friendly: Long metal housing with plastic end-cover and side-feed layout allows easy integration into tight spaces.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | SL1060A1 |
| Driver type | Constant current |
| Number of LED outputs | 4 (UL Class 2) |
| Maximum LED output power | 100W |
| Programmable LED output current range | 200–1,500mA |
| LED output type | Programmable per channel via LEDcode interface |
| LED output voltage range | 2–57V |
| Nominal input voltage range AC | 120–250V (ENEC), 120–277V (UL) |
| Control protocol | DALI (version-1 Device Type 6, Dim-to-Dark) |
| Control channels | 1 |
| Dimming range | 100%–0.1% |
| Dimensions – Length (L) typical | 388 mm / 15.27 in |
| Dimensions – Width (W) typical | 42 mm / 1.65 in |
| Dimensions – Height (H) typical | 30 mm / 1.18 in |
| Weight | 681.5 g |
