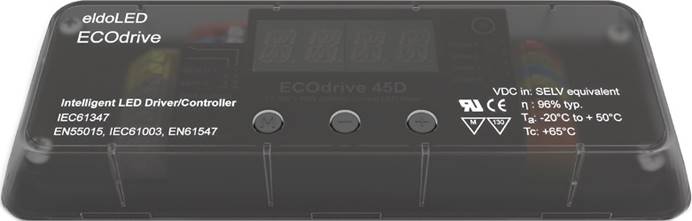

eldoLED ECOdrive 45D Constant-Current DMX LED Driver
Description
Description
The eldoLED ECOdrive 45D is a 45W constant current LED driver designed for DMX-controlled lighting applications. With four independent LED outputs, it delivers precise, flicker-free dimming and smooth color fades, making it ideal for architectural, entertainment, and dynamic lighting environments.
Its intuitive 3-button user interface with display allows for easy configuration of DMX settings, networked mode, and standalone operation. HydraDrive technology ensures smooth color transitions and dark-level dimming, while high efficiency and thermal management keep performance stable and reliable.
Key Features
• 45W constant current LED driver with four independent LED outputs
• DMX compatible with 4 control channels
• HydraDrive for ultra-smooth dimming and color fades
• Programmable output current: 200–1,400mA
• Current configurable in 50mA steps via driver UI or 25mA steps via DMX/FluxTool
• LED output voltage range: 11–31V (Vf LEDs < Vsup-1V)
• NTC interface for robust thermal management
• High efficiency up to 95%
• Dynamic response tunable for architecture or fast-paced video content
• Plastic long form factor for flexible fixture integration
• Configurable on-the-fly via user interface
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | ECO045D2 |
| Driver Type | Constant current |
| Maximum Output Power | 45W |
| LED Output Current Range | 200–1,400mA |
| LED Output Current Resolution | Programmable in 50mA steps via driver UI; 25mA via DMX/FluxTool |
| LED Output Voltage Range | 11–31V |
| Number of LED Outputs | 4 UL Class 2 |
| Input Voltage Range DC | 12–32V |
| Control Protocol | DMX |
| Control Channels | 4 |
| Form Factor | Plastic long housing |
| Length | 153mm / 6.02 in |
| Width | 50mm / 1.97 in |
| Height | 23mm / 0.91 in |
| Weight | 140g |
