ILB CP20 HE S - High-Efficiency LED Emergency Driver
Description
Description

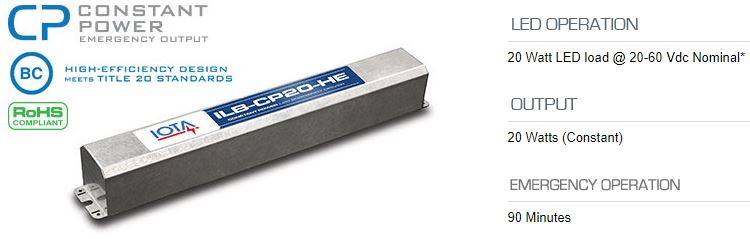

The ILB CP20 HE S from IOTA is a high-efficiency, constant power LED emergency driver engineered for applications requiring a streamlined single-flex mounting configuration. Designed to integrate seamlessly with existing LED fixtures, this emergency driver delivers a consistent 20 watts of output during power interruptions, ensuring dependable illumination for life safety compliance. By meeting California Title 20 efficiency requirements, the ILB CP20 HE S supports energy-conscious lighting designs in commercial, industrial, and institutional environments.
Built for reliability and ease of installation, the ILB CP20 HE S automatically switches to emergency operation upon loss of normal AC power and provides a minimum of 90 minutes of illumination. The unit features a long-life, high-temperature, recyclable Ni-Cad battery housed in a durable galvanized steel enclosure for extended service life. Its compact single flexible conduit design supports multiple mounting configurations, making it a practical solution for both retrofit and new construction projects. Master box packaging of five units simplifies procurement for larger installations.
Key Features and Benefits:
-
Constant Power Output: Supplies a steady 20 watts to maintain consistent emergency lighting levels.
-
High Efficiency Performance: Meets CA Title 20 efficiency requirements for reduced energy consumption.
-
Single Flexible Conduit: Provides a clean, space-saving installation while supporting mounting flexibility.
-
Long-Life Battery System: High-temperature, recyclable Ni-Cad battery delivers 90 minutes of emergency operation.
-
UL Listed and Certified: UL 924 Listed, UL 1310 Certified, and classified to FTBV for code-compliant applications.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | ILB CP20 HE S |

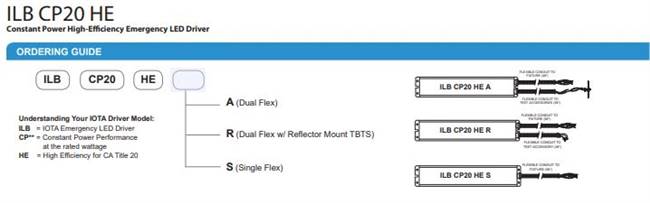

| Mounting Configuration | Single Flex |
| Input Voltage | (Universal) 120–277VAC, 50/60Hz |
| Input Rating | 5.5 Watts (max) |
| Output Voltage | 10–60VDC, Class 2 Compliant |
| Output Current | 1.0A (@20VDC) – 0.3A (@60VDC) |
| Output Power | 20 Watts (constant) |
| Max AC Driver Output Current | 5Adc |
| Power Factor | ≥ 0.85 |
| Emergency Operation | 90 minutes |
| Operating Temperature | 0°C to 55°C |
| Dimensions (L x W x H) | 17.75 in x 2.5 in x 2.375 in |
| Weight | 5.7 lbs |
