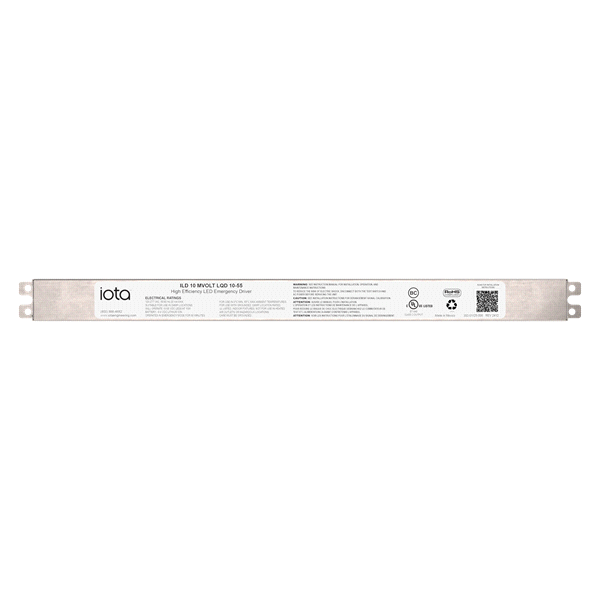

ILD 10 MVOLT LQD 10-55 TBTSSPLENUMSS - LED Emergency Driver
Description
Description
The IOTA ILD 10 MVOLT LQD 10-55 TBTSSPLENUMWHT is a high-efficiency, constant power LED emergency driver engineered for commercial and architectural lighting systems requiring reliable, code-compliant emergency operation. Designed to work seamlessly with existing LED fixtures, this unit delivers a consistent 10 watts of emergency output for a full 90 minutes across a wide 10–55VDC range. Universal 120–277VAC input and a low-profile, plenum-rated enclosure make it an ideal solution for troffers, downlights, recessed luminaires, and other compact installations where space and performance are critical.

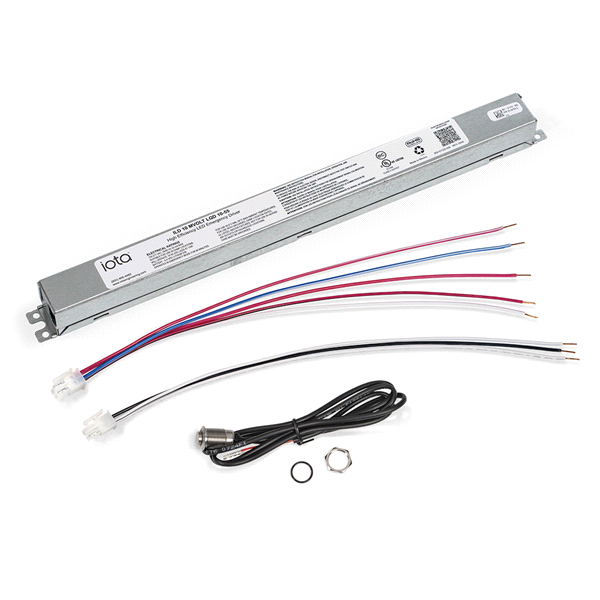

Built with advanced lithium iron-phosphate battery technology, the ILD 10 MVOLT LQD maintains regulated power levels throughout the full emergency runtime, even as battery voltage declines. Integrated self-diagnostics with automatic monthly and annual testing simplify compliance with life safety codes, while AC Activate circuitry eliminates the need for manual battery connection during installation. A Quick Disconnect harness and stainless steel, IP67-rated plenum test switch further streamline installation and long-term maintenance in demanding environments.
Key Features and Benefits:
-
Constant Power Emergency Output: Delivers a stable 10 watts of emergency lighting for a full 90 minutes.
-
Wide Voltage Compatibility: Supports 10–55VDC Class 2 LED loads for broad fixture compatibility.
-
Lithium Iron-Phosphate Battery: Provides compact form factor, fast recharge, and extended service life.
-
Automatic Self-Testing: Performs monthly and annual diagnostics to simplify inspection and code compliance.
-
Plenum-Rated Low-Profile Design: Suitable for air-handling spaces, recessed fixtures, and compact housings.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | ILD 10 MVOLT LQD 10-55 TBTSSPLENUMWHT |
| Brand / Series | IOTA – ILD Series |
| Input Voltage | Universal 120–277VAC, 50/60Hz |
| Input Current | 20 mA (max) |
| Emergency Output Power | 10 Watts (constant) |
| Output Voltage | 10–55VDC, Class 2 Compliant |
| Output Current | 1.0A @10VDC to 0.18A @55VDC |
| Max Output Current | 1.4A |
| Emergency Runtime | 90 minutes |
| Battery Type | Lithium Iron-Phosphate |
| Recharge Time | 24 hours |
| Battery Life | 5–7 years |
| Surge Protection | Meets ANSI/IEEE C62.41.2-2002 |
| Operating Temperature | 0°C to 55°C |
| Dimensions | 15.5 in (L) x 1.14 in (W) x 1.16 in (H) |
| Weight | 1.25 lbs |
| Mounting | Field or Factory Install, Plenum-Rated, Suitable for IC and Damp Locations |
| Dimming | Not applicable (emergency mode driver) |
| Included Accessories | Stainless steel IP67 plenum-rated test switch and LED charge indicator |
| Certifications & Compliance | UL 924 Listed, UL Listed and Classified, UL 1310 Class 2, CSA C22.2 No. 141, FCC Compliant, California Title 20 Listed, RoHS Compliant, NFPA 101 Self-Testing Compliant |
