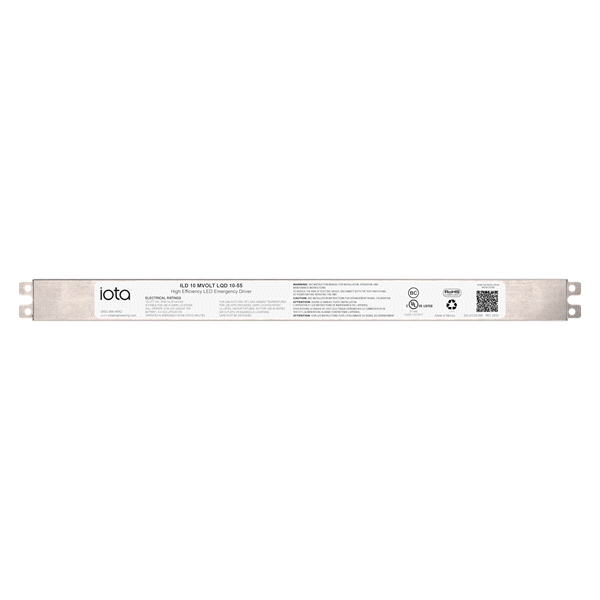

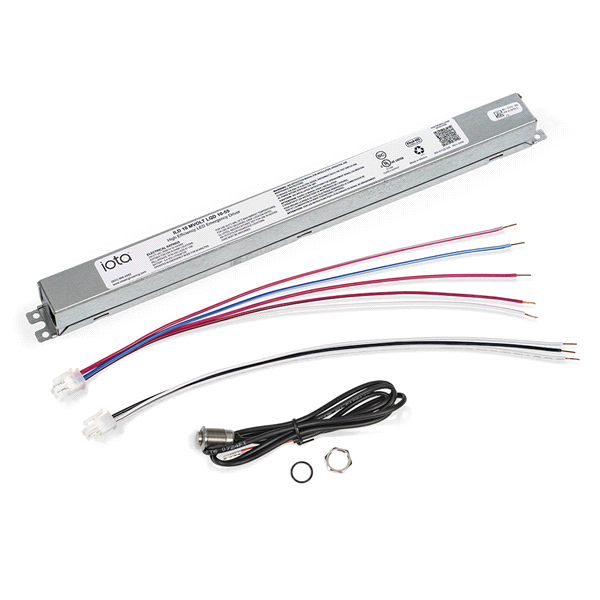

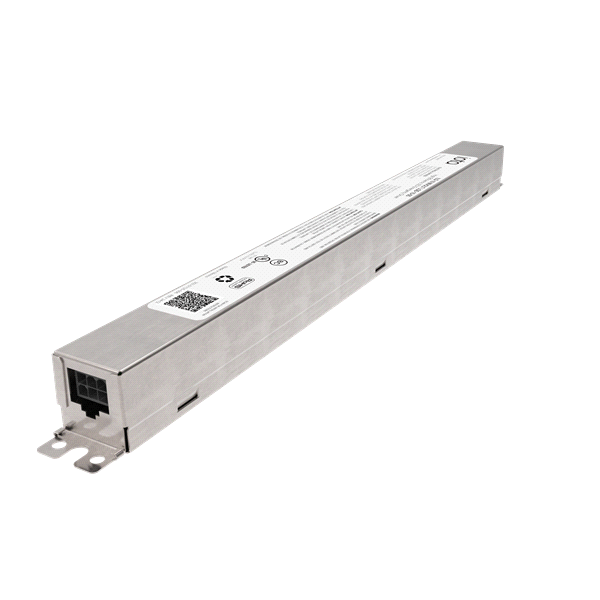

ILD 10 MVOLT LQD 10-55 TBTSSPLENUMWHT - LED Emergency Driver

The IOTA ILD 10 MVOLT LQD 10-55 TBTSSPLENUMWHT is a high-efficiency, constant power LED emergency driver engineered for commercial and architectural lighting systems that require reliable, code-compliant emergency operation. Designed to operate the same LED fixture in both normal and emergency modes, it delivers a consistent 10 watts of output over a 10–55VDC range for a full 90 minutes during power loss. Its low-profile, plenum-rated housing and universal 120–277VAC input make it ideal for troffers, downlights, recessed luminaires, and other compact applications where both performance and streamlined installation are critical.

The ILD 10 incorporates lithium iron-phosphate battery technology, providing a significantly reduced form factor, long service life, and rapid 24-hour recharge capability. Integrated self-diagnostics with automatic monthly and annual testing simplify compliance with life safety codes, while AC Activate circuitry removes the need for manual battery connection. Quick Disconnect harnesses and a white plastic, IP67-rated plenum test switch further facilitate installation and long-term maintenance. This combination of compact design, intelligent monitoring, and regulatory compliance makes the ILD 10 an ideal solution for commercial and architectural emergency lighting applications.

Key Features and Benefits:

• Constant Power Emergency Output: Provides 10 watts of steady illumination for a full 90 minutes during a power outage.

• Wide Voltage Range: Supports 10–55VDC Class 2 LED loads for compatibility with a variety of fixtures.

• Lithium Iron-Phosphate Battery: Long life, 24-hour recharge, and compact form factor reduce installation footprint.

• Automatic Self-Testing: Monthly and annual self-diagnostic testing ensures code compliance with minimal maintenance.

• Plenum-Rated Low-Profile Design: Suitable for air-handling spaces, IC-rated, and damp location installations with recessed luminaires.
