ESS030W-0700-42 Constant Current LED Driver
Regular price
$43.00
Unit price
Unavailable
Description
Description
The ERP Power ESS030W-0700-42 is a 30W constant current LED driver with 700mA output and Tri-Mode dimming. It offers flexible control compatibility in a compact form factor for commercial and architectural lighting.
Key Features
- 30W constant current LED driver
- 700mA fixed output
- Tri-Mode dimming compatibility
- Compact design for fixture integration
- Suitable for commercial applications
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Brand | ERP Power |
| Product Code | ESS030W-0700-42 |
| Input Voltage | 120–277VAC |
| Input Frequency | 50/60Hz |
| Max Output Power | 30W |
| Output Current Range | 700mA |
| Output Voltage Range | 24–42VDC |
| Efficiency | Up to 87% |
| Power Factor | ≥0.90 |
| THD | <20% |
| Inrush Current | <25A |
| Operating Temperature | -20°C to +50°C |
| Case Temperature (Tc) | 80°C max |
| Output Protection | Short circuit, overload, thermal |

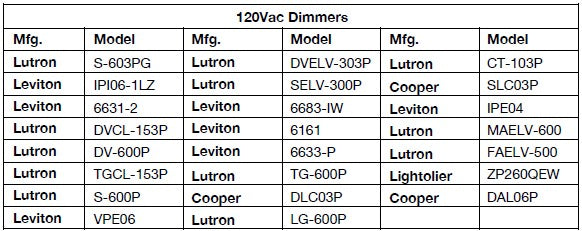

| Dimming Control | Tri-Mode |

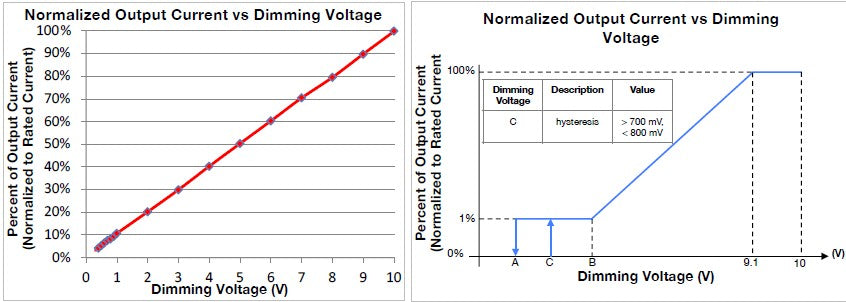

| Dimming Range | 1% – 100% |
| Advanced Features | Compact design |
| Enclosure Rating | IP20 |
| Dimensions | ~5.5" x 1.5" x 1.0" |
| Mounting Length | ~5.0" |
| Certifications & Compliance | UL, FCC, RoHS |
| Sound Rating | Class A |
| Warranty | 5 Years |
