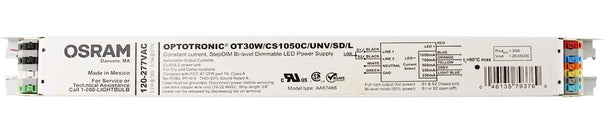

OT 30W UNV 1050C 1DIM STEPDIM J10

The eldoLED OPTOTRONIC OT30W Step-Dim LED Driver is a versatile, compact constant current solution designed for indoor LED applications requiring simple, reliable dimming control. This 30W driver supports field-selectable output currents of 250mA, 350mA, 500mA, 700mA, or 1050mA, giving installers flexibility to adapt to a variety of LED fixtures without the need for multiple drivers. The 50%/100% bi-level step-dimming function allows straightforward brightness adjustment, making it ideal for commercial, retail, and architectural lighting projects. With a wide 120–277VAC input range and output voltage of 25–55VDC, the OT30W ensures dependable, energy-efficient performance.

Designed for safety and compliance, the OT30W features a UL Class 2 rated output, supports both dry and damp locations, and meets the quality standards of the eldoLED Optotronic family. Its compact design, two hot wires plus neutral and ground, and easy mounting make installation fast and adaptable. Backed by a 5-year manufacturer warranty, the OT30W provides long-lasting, reliable performance for demanding indoor LED lighting applications.

• Field-Selectable Output Current: Choose from 250mA, 350mA, 500mA, 700mA, or 1050mA to match your LED fixture requirements.

• Step-Dim Control: 50% / 100% bi-level dimming for simple, flexible brightness adjustment.

• Wide Input Voltage Range: 120–277VAC universal input supports commercial and residential applications.

• Compact & Easy Installation: 11.00″ × 1.20″ × 1.00″ housing with 10.63″ mounting center, two hot wires, neutral, and ground.

• Certified & Reliable: UL Class 2 output, dry/damp location rated, 5-year warranty for long-lasting LED performance.
