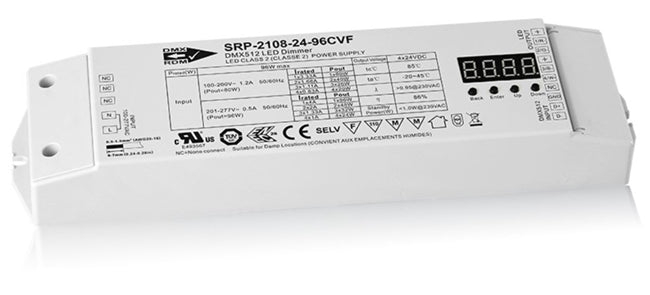

SRP-2108-24-96CVF DMX LED Driver

The SRP2108-24-96CVF is a professional-grade constant voltage LED driver engineered for advanced lighting control in architectural, entertainment, and event-based applications. Delivering up to 96 W of output power at 24 Vdc, this driver supports precise PWM dimming across four independent channels, enabling smooth and consistent light output. With a wide 100–277 Vac input range, it integrates easily into commercial and professional electrical systems while maintaining stable performance across demanding installations.

Designed with full DMX512 and RDM compatibility, the SRP2108-24-96CVF allows centralized control of brightness, dimming curves, strobing effects, and channel grouping through standard DMX lighting controllers. This flexibility makes it ideal for dynamic lighting scenes, color-changing LED systems, and custom visual effects. The compact IP20-rated enclosure is optimized for indoor use, offering reliable operation in controlled environments such as venues, studios, retail displays, and special event lighting systems.

• DMX512 and RDM Control: Enables advanced lighting control, remote addressing, and seamless integration with professional DMX systems.

• Four-Channel Constant Voltage Output: Independent PWM channels provide precise control for multi-zone or RGB/RGBW LED configurations.

• Wide Input Voltage Range: Operates from 100–277 Vac for compatibility with commercial and professional power systems.

• High Output Power Capacity: Delivers up to 96 W total output with 24 W per channel for demanding LED loads.

• Compact Indoor Design: IP20-rated enclosure supports clean integration into indoor lighting installations.
