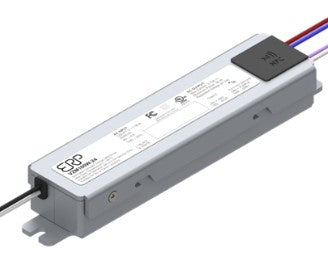

VZM100W-24 Dimmable Constant Voltage LED Driver
Description
Description
The ERP Power VZM100W-24 is a high-performance constant voltage LED driver engineered for architectural and commercial lighting applications requiring smooth dimming and dependable operation. Delivering up to 90 W of regulated 24 Vdc output, this driver supports a wide range of low-voltage LED loads while maintaining high efficiency and electrical stability. Its wide 120–277 Vac input range and UL Class 2 rating simplify specification across commercial projects and ensure safe, code-compliant installation.
Designed with flicker-free 0–10 V dimming and dim-to-off capability, the VZM100W-24 provides precise light control and smooth transitions across the full dimming range. The compact, low-profile IP20-rated enclosure allows for discreet integration into luminaires and tight architectural spaces. Factory-programmed for plug-and-play use, this driver requires no field programming and includes comprehensive protection features to support long-term reliability in dry and damp indoor environments.
-
Regulated 24V Constant Voltage Output: Factory-set 24 Vdc output enables direct connection to LED tape and low-voltage luminaires.
-
Smooth 0–10V Dimming Performance: Flicker-free dimming with dim-to-off supports professional lighting control applications.
-
Compact Low-Profile Design: Space-saving enclosure ideal for architectural fixtures and constrained installations.
-
Class 2 Safety Rating: UL Class 2 output ensures safe low-voltage operation and simplified system design.
-
Integrated Protection and Reliability: Built-in thermal, overvoltage, short-circuit, and overload protection enhance system longevity.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Brand / Series | ERP Power – VZM Series |
| Model | VZM100W-24 |
| Product Code | VZM100W-24 |
| Input Voltage | 120–277 Vac |
| Output Voltage | 24 Vdc, regulated |
| Maximum Output Power | 90 W |
| Output Current Range | 0.38–3.75 A |
| Open Circuit Voltage | 25.68 Vdc |
| Dimming Control | 0–10 V, 1–100% dimming, dim-to-off |
| Efficiency | Up to 90% |
| Power Factor | > 0.9 |
| Total Harmonic Distortion | < 20% |
| Start-Up Time | 300 ms typical |
| Protection Features | Short circuit, over-temperature, over-voltage, open circuit, overload |
| Surge Immunity | ANSI C62.41, 2.5 kV ring wave |
| Ambient Operating Temperature | -20°C to +50°C |
| Maximum Case Temperature | 90°C |
| Enclosure Rating | IP20 |

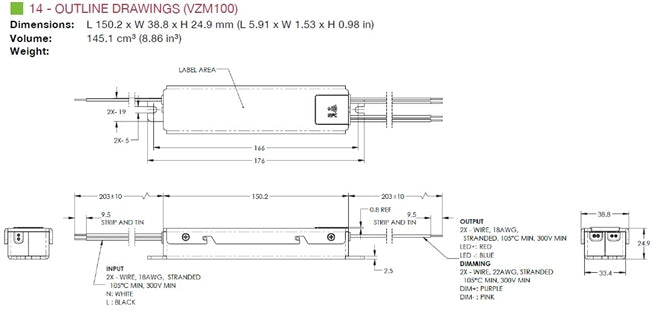

| Dimensions | 5.91 in × 1.53 in × 0.98 in |
| Weight | Approximately 145 g |
| Certifications / Compliance | UL8750 Class 2 and Class P, FCC Part 15, California Title 24, ENERGY STAR compliant, DLC compliant, IEC61000 series, ANSI/IEEE C62.41 |
