Casambi PWM5 Bluetooth Controller
Regular price
$60.00
Unit price
Unavailable
Description
Description
CBU-PWM5 can be controlled with Casambi app which can be downloaded free of charge from Apple App Store and Google Play Store.

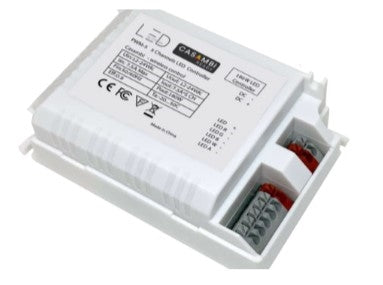

PWM-5 is a Bluetooth controllable, Casambi enabled 5 channel PWM 12-24VDC dimmer for constant voltage LED loads, such as LED strips and constant voltage LED modules. It is connected between a 12-24 VDC power supply and the constant voltage LED load. The maximum combined output current is 7.5A which can be divided between 1 -5 channels, 100w MAX per channel. PWM-5 is protected against overload. Flicker Free.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Input Voltage | 12-24 VDC |
| Max Input Current | 7.5 A |
| Max Case Temperature | 75°C |
| Output Voltage | Same as input |
| Max Output Power | 180 W @ 24 VDC (100 W/channel max), 90 W @ 12 VDC |
| Device Control | PWM via Casambi App |

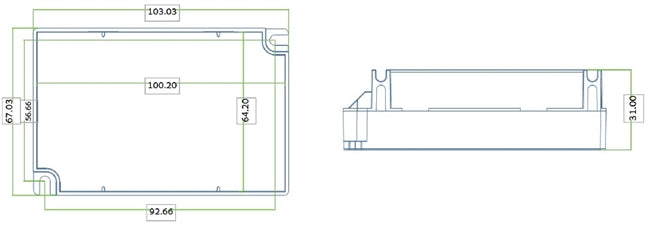

| Case Size | 103×67×32 mm |
| Weight | 80 g |
| Protection | IP20 |
| Operating Temperature | -20~50°C |
| Installation | Remote |
| Control Options | Available Profiles: 1–5 Channels: 1–5 independent channels, 2 Channels: CCT Tunable White, 3 Channels: RGB, 4 Channels: RGBW, 4 Channels: RGB + White, 5 Channels: RGBTW / RGBWA, 5 Channels: RGB + TW |
