DMX RGBW Wall Controller 3 Zones White

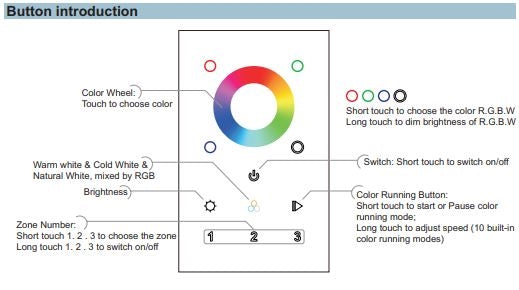

The SR-2812-US3 is a high-performance, 3-zone wall-mounted RGBW DMX512 controller. Engineered in strict accordance with the standard DMX512 protocol, it provides professional-grade, flicker-free control over your lighting environment. The interface features a unique, high-sensitivity touch color wheel for fast, accurate tone selection and independent brightness dimming for each RGBW channel.

Key Features

• 3-Zone Versatility: Control up to three zones independently or synchronize them for a unified look.

• Precision Control: Dedicated dimming for Red, Green, Blue, and White channels.

• DMX512 Compliant: Seamlessly integrates with any standard DMX drivers or decoders.

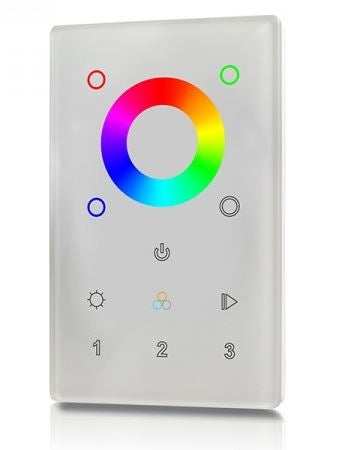

• Sleek Interface: Modern wall-mount design with an intuitive touch-sensitive wheel.

Operation: Setting DMX Addresses

To ensure the controller communicates correctly with your lights, each zone is pre-allocated 4 DMX addresses (one for each color channel). Set your DMX drivers/decoders according to the zones below:

Note: Each zone supports multiple DMX drivers or decoders as long as they are set to the correct start address for that specific zone.

Safety & Warnings

1. Professional Installation: This product must be installed and serviced by a qualified electrician.

2. Environmental Protection: Rated IP20. Protect from direct sunlight and rain. If used outdoors, a waterproof enclosure is required.

3. Ventilation: Mount in a well-ventilated area to prevent overheating.

4. Voltage Compatibility: Verify that all LED power supply output voltages match the product’s requirements.

5. Power Safety: Never connect cables while the power is live. Ensure all connections are secure and correct to avoid short circuits.

6. Secure Wiring: Double-check that all cables are tightened securely within the connectors.

Warranty & Support

We offer lifelong technical assistance and a 5-year warranty on this product.

• Manufacturing Guarantee: Covers free repair or replacement for manufacturing faults within 5 years of the production date (indicated by the 4-digit code, e.g., "1125" represents Week 25, 2011).

• Exclusions: The warranty does not cover damages resulting from:

  • Improper operation or incorrect wiring.

  • Unauthorized modifications or chip replacements.

  • Physical damage post-purchase (vibration, transport).

  • Natural disasters (lightning, fire) or abnormal voltage surges.

  • Negligent storage in high humidity or near corrosive chemicals.
