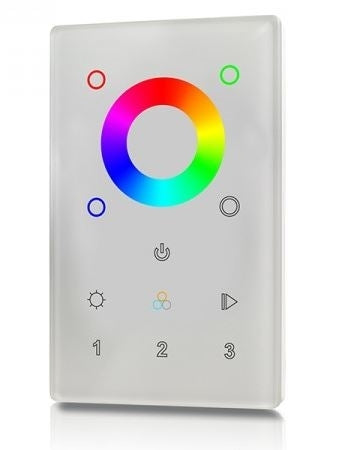

DMX RGBW Wall Controller WIFI 3 Zones White

The SR-2812-US3 (Wi-Fi Edition) is a professional-grade, 3-zone wall-mounted RGBW controller. Combining the reliability of the DMX512 protocol with the convenience of modern Wi-Fi connectivity, this unit allows for seamless lighting control via the high-sensitivity touch wheel or your smart device. Each zone provides independent brightness dimming and precise color tone adjustment for all RGBW channels.

Key Features

• Dual-Control Interface: Use the sleek, built-in touch color wheel or connect via Wi-Fi for remote control.

• 3-Zone Management: Control up to three zones independently or synchronize them for a unified effect.

• RGBW Precision: Fine-tune Red, Green, Blue, and White channels with independent dimming for millions of color possibilities.

• DMX512 Standard: Fully compliant with DMX512 protocols for professional-grade stability.

Operation: Setting DMX Addresses

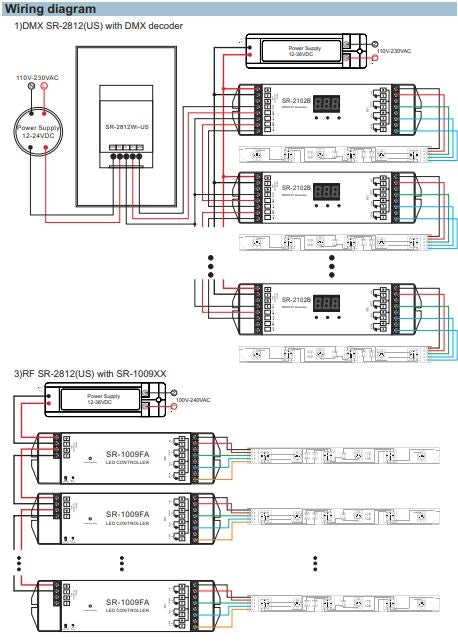

To control your lights, ensure your DMX drivers or decoders are addressed correctly. Each zone is allocated 4 DMX addresses to accommodate the RGBW channels.

Pro Tip: Multiple DMX decoders can be assigned to the same start address if you want them to react identically within the same zone.

Safety & Warnings

• Professional Install: Must be installed and serviced by a qualified professional.

• Environment: Rated IP20. Avoid direct sun and rain. Use a waterproof enclosure for any outdoor applications.

• Airflow: Ensure proper ventilation in the mounting area to prevent heat buildup.

• Voltage Check: Verify that your LED power supply voltage matches the controller's operating requirements.

• Wiring Safety: Never connect cables while power is live. Ensure all connections are tight and correct before powering on to prevent short circuits.

Warranty & Support

We offer lifelong technical assistance and a 5-year warranty (manufacturing date is printed on the unit; e.g., "1125" is Week 25, 2011).

Warranty Coverage:

• Covers free repair or replacement for manufacturing faults only.

• Beyond 5 years, technical support remains available, but parts and labor may be charged.

Warranty Exclusions:

• Damage from incorrect operation, unauthorized repairs, or modified chips.

• Post-purchase damage (vibration, transportation).

• Natural disasters (fire, lightning, earthquakes) or abnormal voltage.

• Negligent storage (high humidity, heat, or chemical exposure).
