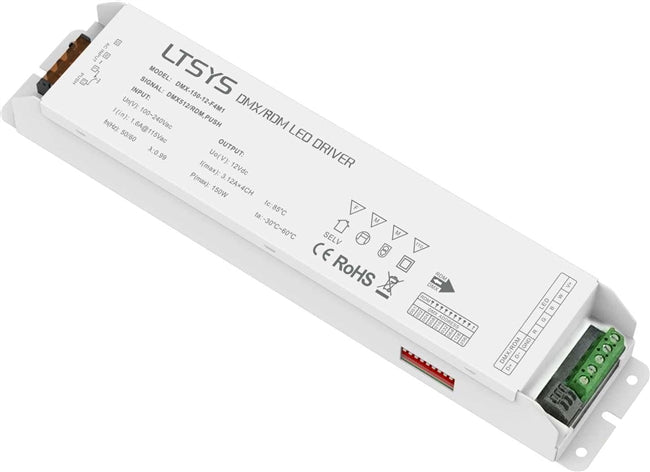

LTECH DMX 150 12 F4M1 Constant Voltage LED Driver

LED Intelligent RGBW Driver AC, 150W, DMX, 4 Control Channels, 4x12V Outputs

The DMX-150-12-F4M1 is a high-performance, intelligent LED driver designed for RGB/RGBW lighting control in commercial and professional indoor applications. Supporting DMX512/RDM and Push DIM control protocols, this driver offers precise, flicker-free dimming from 0.1% to 100%, soft-on and fade-in functionality, and full human-eye comfort. With isolated PWM output across four channels, it ensures stable color rendering and smooth dimming for LED, CT, RGB, or RGBW lamps.

Advanced safety features include over-heat, over-voltage, overload, and short-circuit protection with automatic recovery. Compliant with Safety Extra Low Voltage standards, the driver is optimized for long-term reliability in a variety of indoor lighting environments. Its rectangular metal housing facilitates easy installation and excellent heat dissipation.

Key Features:

• Powerful & Intelligent: 150W constant voltage output with 4×12V channels, isolated PWM for stable RGBW/CT/DIM control.

• Dual Dimming Interfaces: DMX512/RDM and Push DIM compatible; supports remote RDM device management protocol.

• Ultra-Smooth Dimming: Flicker-free 0.1–100% dimming, soft-on/fade-in, PWM frequency 3600Hz.

• Safety & Protection: Overload, over-voltage, over-heat, and short-circuit protection with auto-recovery.

• High Efficiency: Up to 92% efficiency, low THD, and high power factor for energy-efficient operation.

• Durable Design: Rectangular metal housing, compact dimensions (273×57×37mm), robust for indoor environments.

Applications: RGB, RGBW, and CT LED lamps in commercial, stage, architectural, or entertainment lighting environments where high-quality flicker-free dimming and RDM management are required.
