OTI 100W UNV 1600C 2DIM P6 AUX J10
Description
Description

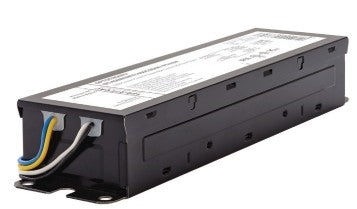

The eldoLED OPTOTRONIC OTi 100W UNV 1600C 2DIM P6 AUX is a high-performance programmable constant current LED driver designed for demanding outdoor and industrial lighting applications. Delivering up to 100W of output power with a wide programmable current range of 500–1600mA, it provides precise and stable illumination for a variety of LED fixtures. With IP66-rated protection, UL Type HL certification, and compliance with ANSI C82.77-5 and NEMA 410 inrush requirements, this driver is built to withstand harsh environments while ensuring reliable long-term operation.
Featuring advanced dimming and control capabilities, the OTi 1600C supports isolated 0–10V, PWM, and analog dimming, as well as AstroDIM for automated light management. Its robust protection features—including NTC thermal foldback, constant lumen maintenance, and end-of-life indication—make it ideal for energy-efficient and safe industrial or outdoor LED installations. Auxiliary outputs further enable integration with smart sensors or control systems.
Key Features
-
Wide Programmable Output: Adjustable 500–1600mA current (default 1050mA) for precise LED performance.
-
Flexible Dimming Options: Supports 0–10V isolated, PWM, analog dimming, and AstroDIM for advanced lighting control.
-
Rugged Outdoor Protection: IP66-rated enclosure and UL Type HL listing ensure durability in wet and harsh conditions.
-
Smart and Safe Operation: LED thermal protection, constant lumen output, end-of-life indicator, and auxiliary outputs for sensors or control.
-
Certified and Compliant: UL Listed, FCC Part 15 Class A, ANSI C82.77-5 (6kV), ANSI C136.2 EFT (2kV), Type HL, and 5-Year Warranty.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | OTi 100W UNV 1600C 2DIM P6 AUX |
| Input Voltage | 120–277VAC ±10% |
| Input Frequency | 50–60Hz ±5% |
| Max Output Power | 100W |
| Output Current Range | 500–1600mA (programmable in 1mA steps) |
| Default Output Current | 1050mA |
| Output Voltage Range | 40–185V DC |
| Efficiency | Up to 91% |
| Power Factor | >0.95 @ full load |
| THD | <10% @ full load |
| Inrush Current | 43A @ 120V / 69A @ 277V |
| Operating Temperature | -40°C to +55°C |
| Case Temperature (Tc) | Max 85°C |
| IP Rating | IP66 |
| Dimming | 0–10V isolated, PWM, analog, Dim-to-Off, AstroDIM |
| Advanced Features | LED thermal protection, Constant Lumen Output, End-of-Life Indicator |

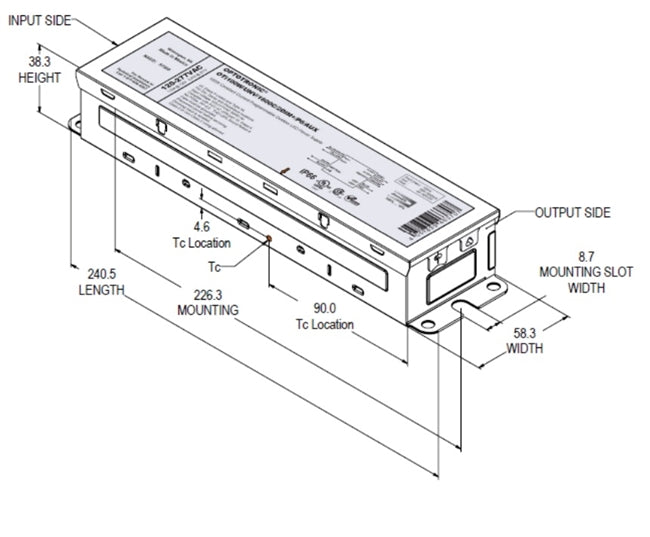

| Mounting Length | 8.90” |
| Dimensions | 9.46” L × 2.29” W × 1.5” H |
| Weight | Approx. 1.5 lbs |
| Certifications & Compliance | UL Listed (Dry & Damp, UL File: E333135), FCC Part 15 Class A EMI, Sound Rating: Class A, ANSI C82.77-5 (6kV Transient), ANSI C136.2 EFT (2kV), IP66 Rated, Type HL, 5-Year Limited Warranty, NEMA 410 Compliant |
