OTI 95W UNV 2750C 2DIM P6 DIM-1 J10
Please type the current output the driver is programmed to ex. "500MA"
Click on image above to locate CI Code
Free shipping on orders over $350.
OTI 95W UNV 2750C 2DIM P6 DIM-1 J10
Description
Description

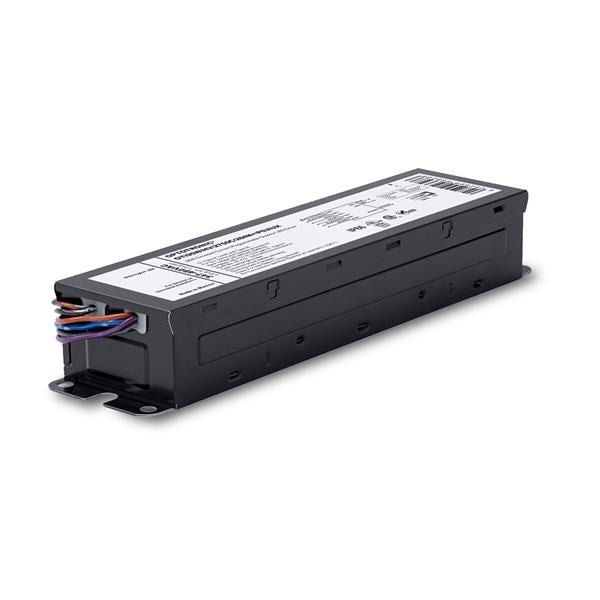

The eldoLED OPTOTRONIC OTi 95W UNV 2750C 2DIM P6 DIM-1 is a high-performance, Class 2 programmable constant current LED driver engineered for demanding outdoor and architectural lighting applications. Delivering up to 95W of output power with a programmable current range of 700–2750mA, it provides precise, flicker-free illumination for commercial, industrial, and architectural fixtures. Equipped with 0–10V analog dimming and AstroDIM functionality, this driver enables smooth, energy-efficient light adjustment while maintaining consistent lumen output. Built-in LED thermal protection, constant lumen output, and end-of-life indicators ensure long-term reliability in harsh environments.
Designed for extreme conditions, the OTi 95W features an IP66-rated enclosure, making it ideal for outdoor, wet, or dusty installations. Its compact and durable design supports versatile mounting and installation, while UL Class P certification and Type HL hazardous location rating ensure safety and regulatory compliance. With soft-start capability, overvoltage and short-circuit protection, and NTC thermal foldback, this driver delivers professional-grade performance and reliability for architects, lighting designers, and contractors seeking high-output, programmable LED solutions.
Key Features
-
High Output Power & Programmable Current: Supports up to 95W, adjustable 700–2750mA with a default of 2700mA for precise light control.
-
0–10V Analog Dimming & AstroDIM: Smooth 1–100% dimming, dim-to-off capable, with advanced AstroDIM scheduling for energy savings.
-
Advanced Protections: OVP, OLP, SCP, OTP with auto-recovery, and NTC thermal protection for safe, reliable operation.
-
IP66-Rated Enclosure: Suitable for outdoor, wet, and harsh environment installations.
-
Constant Lumen Output & End-of-Life Indicator: Maintains consistent light levels over time and signals fixture end-of-life for maintenance planning.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | OTi 95W UNV 2750C 2DIM P6 DIM-1 |
| Input Voltage | 120–277VAC ±10% |
| Input Frequency | 50–60Hz |
| Max Output Power | 95W |
| Programmable Output Current | 700–2750mA |
| Factory Default Output Current | 2700mA |
| Output Voltage Range | 15–54VDC |
| Efficiency | ≈89% @ 120V, ≈90% @ 277V |
| Power Factor | >0.9 @ Full Load |
| THD | <20% |
| Inrush Current | 60A @ 120V, 100A @ 277V |
| Operating Temperature | -40°C to +60°C |
| Max Case Temperature (Tc) | 85°C |
| Dimming | 0–10V Isolated Analog, 1–100%, Dim-to-Off |
| Advanced Features | AstroDIM, Constant Lumen Output, Soft Start, End-of-Life Indicator, NTC Thermal Protection |
| Protections | OVP, OLP, SCP, OTP (Auto-Recovery) |
| Enclosure Rating | IP66 |

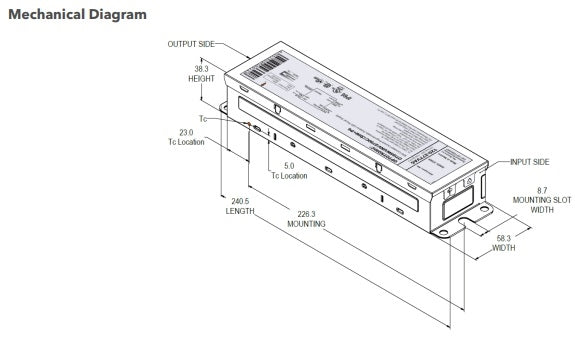

| Mounting Length | 8.9" |
| Dimensions | 9.46" L × 2.29" W × 1.5" H |
| Certifications | UL Class P (Dry & Damp Locations), Type HL Rated, UL File #E333135, FCC Part 15 Class A |
| Sound Rating | Class A |
| Surge & Immunity | ANSI C82.77-5-2015 (6kV Transient), 4kV EFT Immunity |
| NEMA Compliance | NEMA 410 Inrush Compliant |
| Warranty | 5-Year Limited |
