OT 20W UNV 0A5 DUALDIM DIM-1 F-HOUSING J25
Description
Description

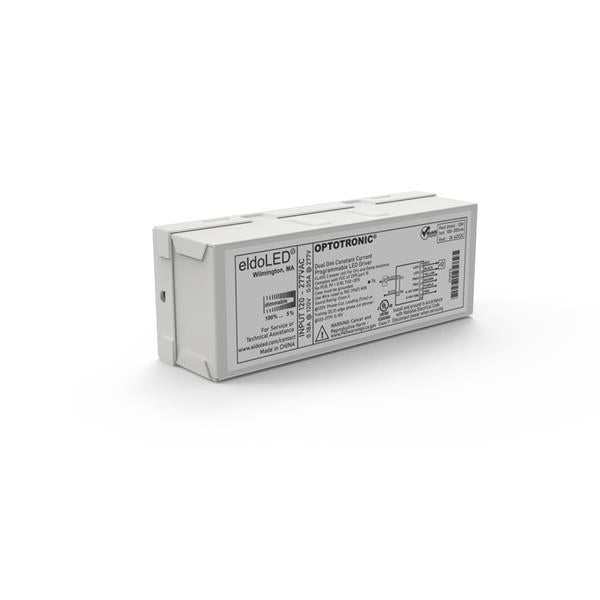

The eldoLED OPTOTRONIC OT20W Dual Dim-1 LED Driver is a compact, high-performance solution for architectural and commercial LED installations requiring advanced dimming and precise control. This 20W constant current driver features dual dimming capability via 0–10V analog and forward/reverse phase-cut inputs, enabling smooth, flicker-free dimming from 0.6V dim-to-off to full brightness. With a programmable output range of 250–500mA in 1mA steps and a wide output voltage range of 26–42VDC, the OT20W ensures flexible and reliable operation for a variety of LED fixtures.
Designed for durability and safety, the OT20W includes NTC thermal foldback protection at 95°C, dim-to-off functionality, and full compliance with UL, FCC, RoHS, and IP20 standards. Its compact F-style and J-style housings allow easy installation in tight spaces, while the driver delivers a long 50,000-hour lifetime at 80°C Tc. Backed by a 5-year warranty, this driver offers reliable, energy-efficient, and programmable LED performance for demanding indoor applications.
-
Dual Dimming Control: Supports 0–10V analog and phase-cut (forward/reverse) dimming for smooth, flicker-free light output.
-
Programmable Output Current: Adjustable 250–500mA in 1mA increments for precise LED performance and customization.
-

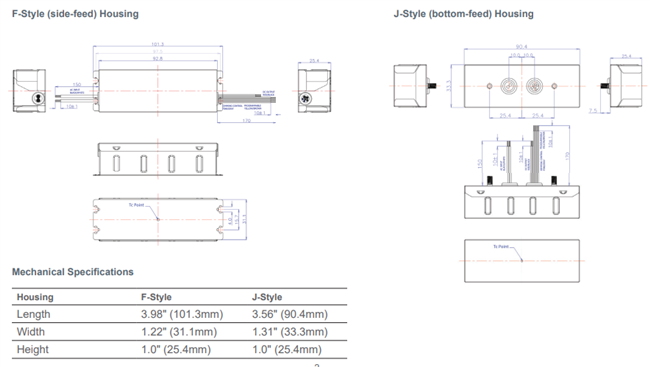

Compact & Flexible Housing: F-style (3.98″ × 1.22″ × 1.0″) or J-style (3.56″ × 1.31″ × 1.0″) housings for tight-space installations.
-
Advanced Protection Features: NTC thermal foldback, dim-to-off functionality, and compliance with ANSI C82.77 and NEMA 410 inrush requirements.
-
Certified & Reliable: UL Class P, FCC Class A & B, RoHS compliant, IP20 rated, with 50,000-hour lifetime and 5-year warranty.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | OT20W Dual Dim-1 |
| Input Voltage | 120–277VAC ±10% |
| Frequency | 50–60Hz |
| Input Current | 0.21A @ 120V, 0.09A @ 277V |
| Output Power | 20W Max |
| Programmable Output Current | 250–500mA (1mA steps) |
| Output Voltage Range | 26–42VDC |
| Efficiency | ≥84% @ 120V, ≥83% @ 277V |
| Power Factor | >0.9 @ full load |
| THD | <20% |
| Ripple Current | <30% |
| Load Regulation | <3% |
| Startup Time | <0.5 sec |
| Inrush Current | 5.2A @ 120V, 10.0A @ 277V |
| Dimming Compatibility | 0–10V and Phase-Cut (forward/reverse) |
| Mounting Distance | Up to 16 feet |
| Wire Leads | AWG18 (input/output), AWG22 (DIM/PRG) |
| Housing Type | F-style (3.98″ × 1.22″ × 1.0″), J-style (3.56″ × 1.31″ × 1.0″) |
| Ambient Operating Temp | -30°C to +50°C |
| Case Temperature (Tc) | Rated 80°C, Max 90°C |
| Storage Temperature | Max 75°C |
| Humidity | ≤85% RH, non-condensing |
| Location Rating | Dry & Damp, IP20 |
| Certifications | UL Class P Listed (E333135), FCC Part 15 Class A & B, RoHS Compliant |
| NEMA Compliance | NEMA 410 (Inrush Protection) |
| ANSI Compliance | ANSI C82.77 – 2.5kV Transient Protection |
| Sound Rating | Class A |
| Warranty | 5-year limited warranty @ Tc ≤80°C |
