OTI 50W UNV 1A4 1DIM AUX DIM-1 J10 Optotronic
Description
Description

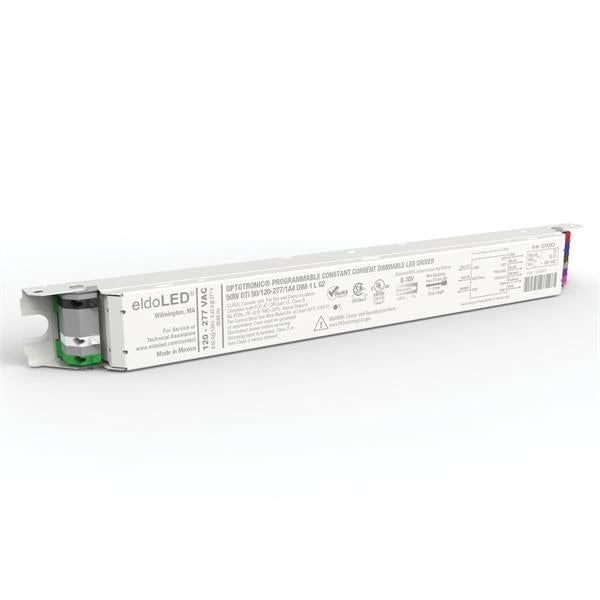

The eldoLED OPTOTRONIC OTi 50W Compact is a programmable linear LED driver engineered for high-performance indoor architectural lighting applications. Delivering a programmable output current from 400–1400mA with 1mA resolution (default 1050mA), it provides precise control over LED fixtures. The driver features isolated 0–10V analog dimming with dim-to-off, ensuring smooth, flicker-free operation. Advanced features such as constant lumen maintenance, soft start, end-of-life indication, and thermal foldback via NTC input protect LEDs and maintain consistent light output over the lifetime of the installation.
Ideal for designers, contractors, and facility managers, the OTi 50W driver combines high efficiency, safety, and reliability. It is UL Class 2 recognized, FCC Class A compliant, and RoHS certified, making it suitable for code-compliant indoor installations. Built-in protection against over-voltage, overload, short-circuit, and thermal faults ensures dependable operation. Compact dimensions, remote mounting capability, and architectural-grade dimming protection make this driver perfect for commercial projects, office spaces, and modern lighting systems requiring precise, programmable LED control.
Key Features & Benefits
-
Programmable Output Current: 400–1400mA with 1mA resolution, default 1050mA for precise LED control.
-
Advanced Dimming: Isolated 0–10V analog dimming down to 1% with dim-to-off for smooth, flicker-free lighting.
-
Thermal and Electrical Protection: NTC-based thermal foldback with over-voltage, overload, short-circuit, and over-temperature safeguards.
-
High Efficiency & Performance: ≥88% efficiency at 120V and ≥89% at 277V with low THD for reliable, energy-efficient operation.
-
Architectural-Grade Features: Soft start, constant lumen maintenance, end-of-life indicator, and remote mounting up to 16 feet.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | OTi 50W |
| Input Voltage | 120–277V AC ±10% |
| Frequency | 50–60Hz |
| Output Current | Programmable 400–1400mA (default 1050mA) |
| Output Voltage | 10–55V DC |
| Max Output Power | 50W |
| Dimming Control | 0–10V analog (1–100%, dim-to-off) |
| Startup Time | <1 second |
| Inrush Current | 1.33A @ 120V / 2.66A @ 277V |
| Standby Power | 1.4W @ 120V / 1.7W @ 277V |
| Power Factor | >0.9 |
| THD | <10% @ 120V / <20% @ 277V |
| Efficiency | ≥88% @ 120V / ≥89% @ 277V |
| NTC Input | Yes, required for thermal foldback |
| Over Voltage / Overload / Short Circuit Protection | Yes (non-latching) |
| Over Temperature Protection | Foldback @ 110°C |
| Operating Temperature | -30°C to +50°C |
| Max Case Temperature | 85°C (Warranty valid up to 75°C) |
| Relative Humidity | Max 85%, non-condensing |

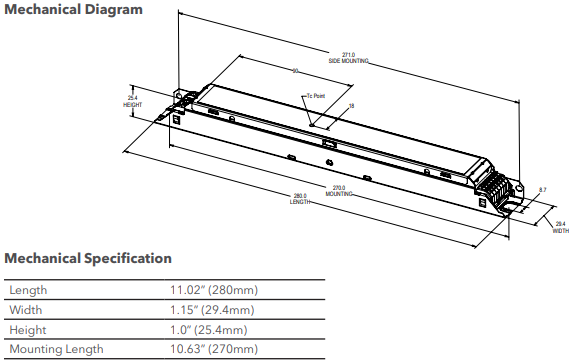

| Length | 11.02" (280mm) |
| Width | 1.15" (29.4mm) |
| Height | 1.0" (25.4mm) |
| Mounting Length | 10.63" (270mm) |
| Remote Mounting Distance | Up to 16 feet |
| Certifications | UL Recognized (File #E333135) |
| EMI Compliance | FCC Part 15 Class A |
| Surge Protection | NEMA SSL 1–2010 (2.5kV) |
| EFT Immunity | IEC 61000-4-4 Level 3 |
| RoHS Compliance | Yes |
| Sound Rating | Class A |
| Location Rating | Dry and Damp |
| Warranty | 5-Year Limited @ Tc ≤75°C |
