40W 300-1050mA NFC CC DALI-2 DT6/DT8 tunable white LED driver SE-40...
Regular price
$50.00
Unit price
Unavailable
Description
Description

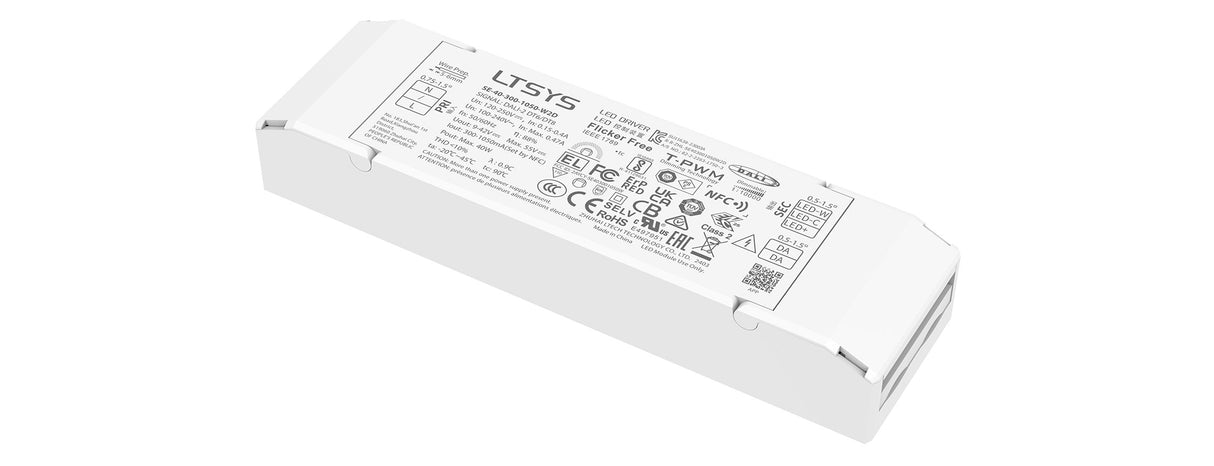

The LTECH SE40-300-1050-W2D is a 40W high-performance constant current LED driver designed for tunable white applications. It supports DALI-2 DT8 for precise color control and smooth dimming performance.
-
Key Features
- 40W Constant Current Driver
- Output Current: 300–1050mA
- DALI-2 DT8 Tunable White
- Smooth, flicker-free dimming
- High efficiency
-
Applications
- Architectural lighting
- Tunable white systems
- Commercial fixtures
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | SE40-300-1050-W2D |
| Input Voltage | 120–277VAC |
| Input Frequency | 50/60Hz |
| Max Output Power | 40W |
| Output Current Range | 300–1050mA |
| Output Voltage Range | ~10–57VDC |

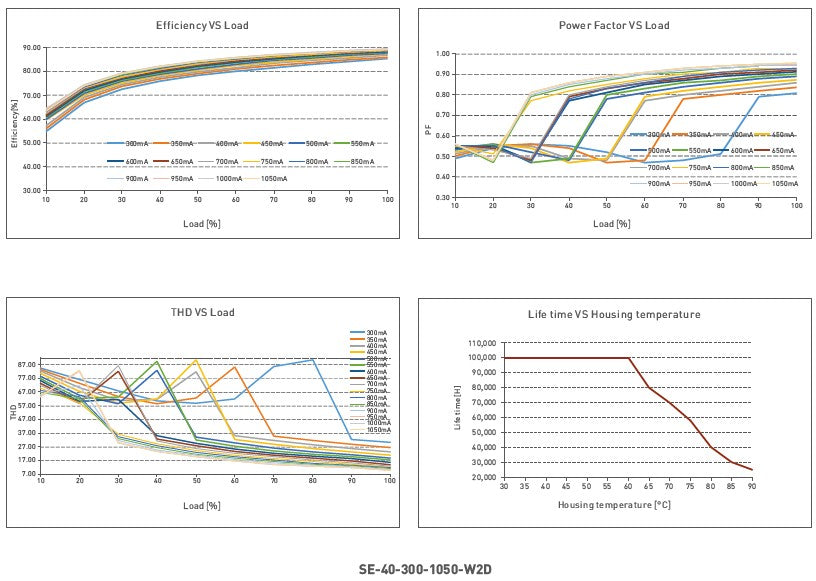

| Efficiency | Up to 90% |
| Power Factor | ≥0.95 |
| THD | <15% |
| Inrush Current | <25A @ 230VAC |
| Operating Temperature | -20°C to +50°C |
| Case Temperature (Tc) | 85°C max |
| Output Protection | Overload, short circuit, thermal |
| Dimming Control | DALI-2 DT8 |
| Dimming Range | 1% – 100% |
| Advanced Features | Tunable white control, high current |
| Enclosure Rating | IP20 |

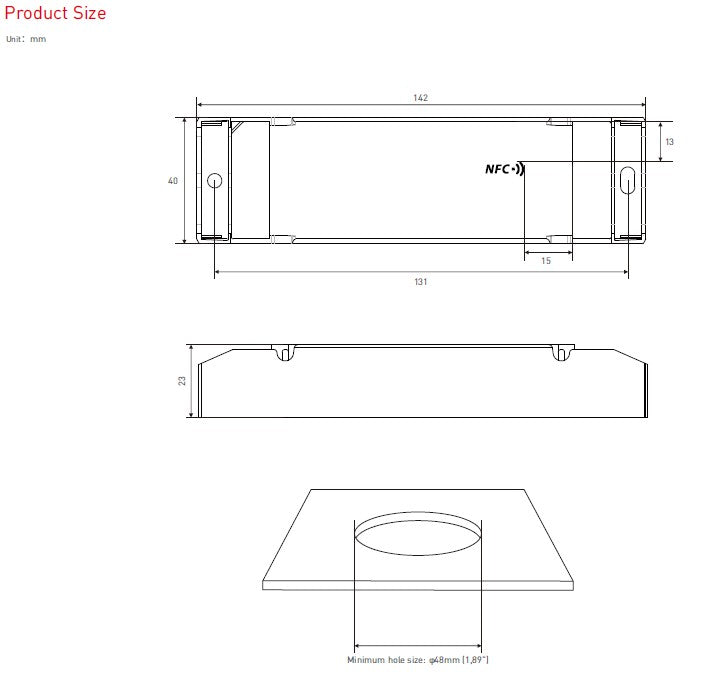

| Dimensions | ~6.7" x 1.6" x 1.1" |
| Mounting Length | ~6.2" |
| Certifications & Compliance | UL, CE, RoHS, DALI-2 |
| Sound Rating | Class A |
| Warranty | 5 years |
