40W 300-1050mA NFC CC 0/1-10V tunable white LED driver SE-40-300-10...
Regular price
$50.00
Unit price
Unavailable
Description
Description

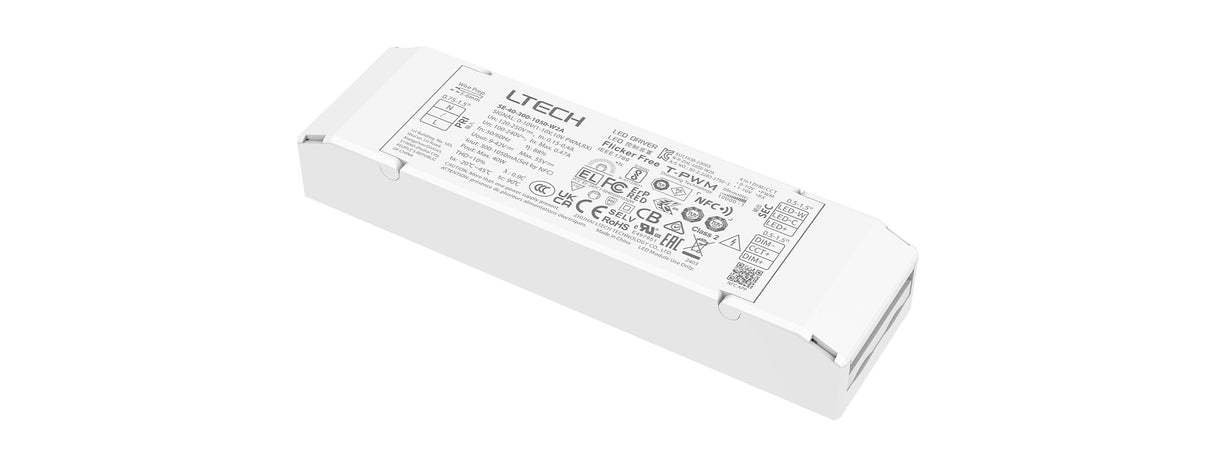

The LTECH SE40-300-1050-W2A is a 40W constant current LED driver designed for tunable white lighting applications. Featuring dual-channel 0–10V control for both brightness and color temperature (CCT), this driver provides smooth dimming and precise white tuning for commercial and architectural lighting systems.
Key Features
- 40W Constant Current LED Driver
- Output Current: 300–1050mA (programmable)
- Tunable White (CCT + Intensity Control)
- Dual 0–10V Control (DIM + CCT)

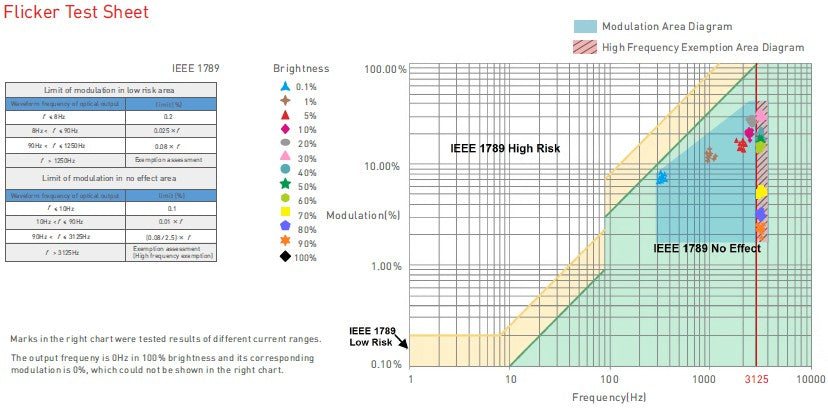

- Smooth, flicker-free dimming
- NFC programmable settings
- Compact design for fixture integration
Applications
-
- Tunable white linear fixtures
- Commercial lighting systems
- Retail and hospitality lighting
- Architectural LED installations
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | SE40-300-1050-W2A |
| Brand | LTECH |
| Input Voltage | 120–277VAC |
| Input Frequency | 50/60Hz |
| Max Output Power | 40W |

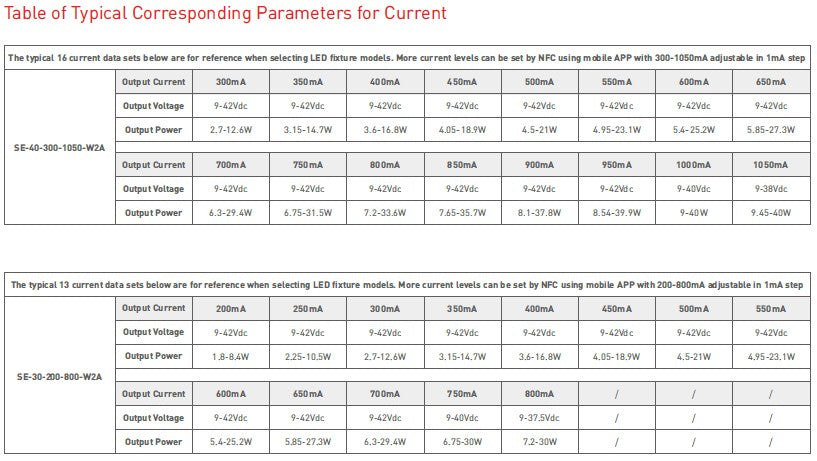

| Output Current Range | 300–1050mA |
| Output Voltage Range | ~10–57VDC |
| Efficiency | Up to 90% |
| Power Factor | ≥0.95 |
| THD | <15% |
| Inrush Current | <25A @ 230VAC |
| Operating Temperature | -20°C to +50°C |
| Case Temperature (Tc) | 85°C max |
| Output Protection | Short circuit, overload, thermal |

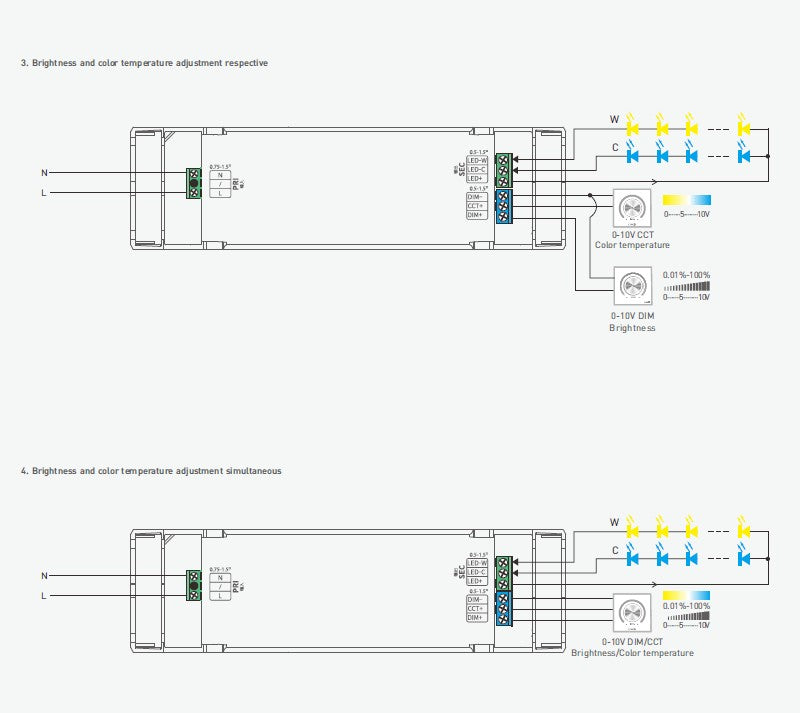

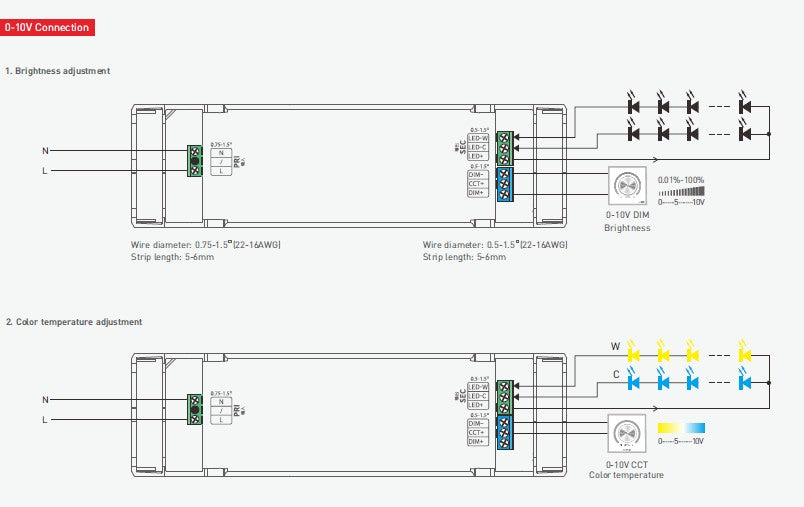

| Dimming Control | Dual 0–10V (Brightness + CCT) |
| Dimming Range | 1% – 100% |
| Advanced Features | Tunable white control, NFC programming, flicker-free performance |
| Enclosure Rating | IP20 |
| Certifications & Compliance | UL, CE, RoHS |
| Sound Rating | Class A |
| Warranty | 5 Years |
