OTI 200W UNV 900C 2DIM P6 AUX J10
Description
Description

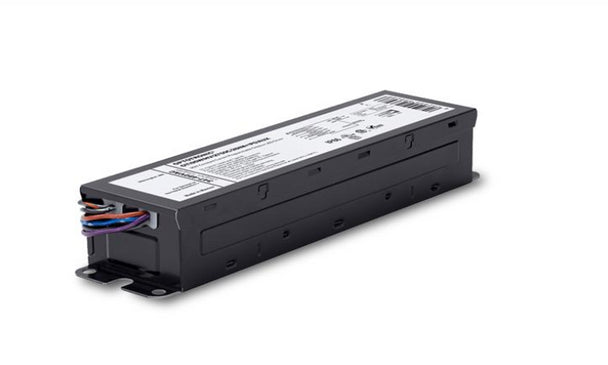

The eldoLED OPTOTRONIC OTi 200W UNV 900C 2DIM+/P6 AUX is a high-powered, programmable LED driver designed for intelligent outdoor and industrial lighting applications. Delivering up to 200W of constant current power with a programmable output range of 500–900mA (factory default 700mA), it provides precise, stable illumination for LED fixtures. The IP66-rated enclosure, universal 120–277V input, and Type HL compliance ensure reliable performance in harsh environments, while its integrated auxiliary (AUX) power output allows for direct powering of sensors, wireless controllers, or photocells without extra power supplies.
Equipped with advanced dimming and control features, the driver supports 0–10V analog dimming from 10–100% and AstroDIM for automated light management. Additional benefits include constant lumen output, NTC thermal protection, and end-of-life indication, making this driver ideal for smart architectural, street, and industrial LED installations requiring long-term durability and intelligent integration.
Key Features
-
High-Power Programmable Output: Adjustable 500–900mA current (factory default 700mA) for precise LED performance.
-
Auxiliary Power Integration: Built-in 12V/20V/24V output to power sensors, controllers, or photocells without additional supplies.
-
Advanced Dimming Options: Supports 0–10V analog dimming 10–100% and AstroDIM for automated lighting control.
-
Rugged Outdoor Protection: IP66-rated enclosure, Type HL compliance, and universal 120–277V input suitable for demanding conditions.
-
Smart and Safe Operation: Constant lumen output, NTC thermal protection, end-of-life indicator, UL Class 2 certification, and 5-Year Warranty.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | OTi 200W UNV 900C 2DIM+/P6 AUX |
| Input Voltage | 120–277VAC |
| Input Frequency | 50–60Hz |
| Max Output Power | 200W |
| Output Current Range | 500–900mA (programmable in 1mA steps) |
| Default Output Current | 700mA |
| Output Voltage Range | 125–285V DC |
| Efficiency | Up to 93% |
| Power Factor | >0.90 @ full load |
| THD | <20% @ full load |
| Dimming Control | 0–10V analog, AstroDIM |
| Dimming Range | 10–100% |
| Advanced Features | AstroDIM, Constant Lumen Output, End-of-Life Indicator, NTC Thermal Protection, Built-in AUX Output |
| Enclosure Rating | IP66 |
| Mounting Length | 8.90” |
| Dimensions | 9.46” L × 2.29” W × 1.5” H |
| Certifications & Compliance | UL Class 2, Type HL, FCC Part 15 Class A, Dry/Damp/Wet Rated, 5-Year Warranty |
| Sound Rating | Class A |
