eldoLED Casambi BT-L2E1 LightShape Tunable White, two channel control for dimming and CCT

Experience the industry-leading eldoLED Quality of Light with this digitally integrated BLE radio package. Designed for seamless Casambi wireless control and Bluetooth Low Energy (BLE) beaconing, this radio offers a simple 2-wire digital integration with eldoLED drivers via the LEDcode2 interface.

This combination enables effortless inclusion into Casambi BLE lighting control mesh networks while simplifying the certification process for your luminaire system.

Key Features

• Casambi Ready: Native integration for advanced wireless lighting control.

• LightShape Tunable White: Profile ID 5403 allows for dual-channel control of both dimming and Color Temperature (CCT in Kelvin).

• High-Precision Dimming: Supports ranges from 100% down to 0.1% (SOLOdrive/DUALdrive) or 1% (ECOdrive).

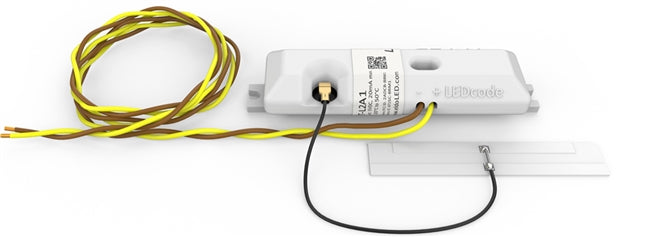

• Easy Installation: 2-wire, low-voltage LEDcode2 connection simplifies wiring and setup.

• Reliability: Integrated protection against incorrect wiring of incoming LEDcode lines.

Electrical & Wireless Specifications

Control Characteristics

• Control Channels: * 1 Channel: SOLOdrive & ECOdrive

  • 2 Channels: DUALdrive & LightShape

• Protocol: LEDcode2

  ---



Standards & Compliance

• Safety: EN 62368-1:2014, EN 62479:2010

• Radio & EMC: EN301 489-1/17, EN300 328 V2.1.1, 47 CFR Part 15.247

• Bluetooth: Qualification & Declaration ID: D037520

• Environmental: RoHS2 and REACH (Art.33) compliant

• Immunity: ANSI C63.4:2014 Surge Immunity

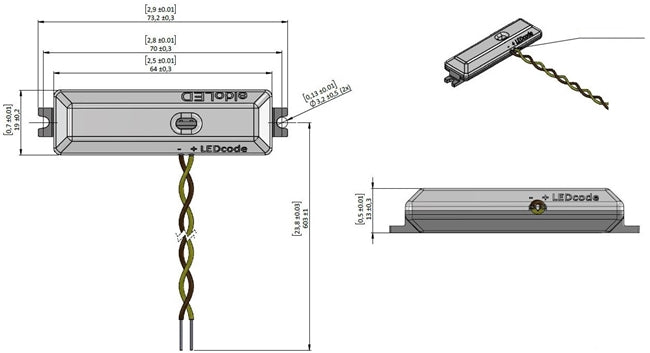

Mechanical Notes

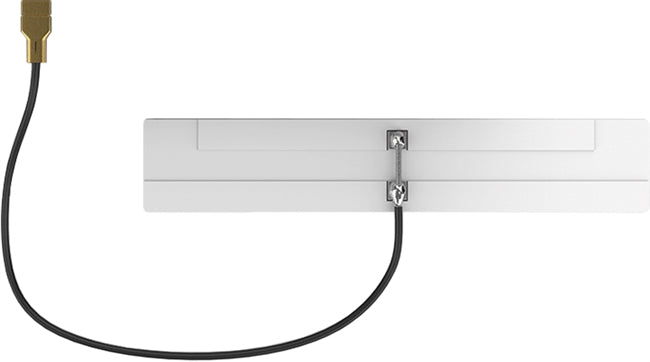

• Antenna Setup: Actual range is influenced by transmit power and the surrounding environment.

• Integration: Low-voltage connection makes this radio an ideal add-on for digitally integrated luminaire packages.
