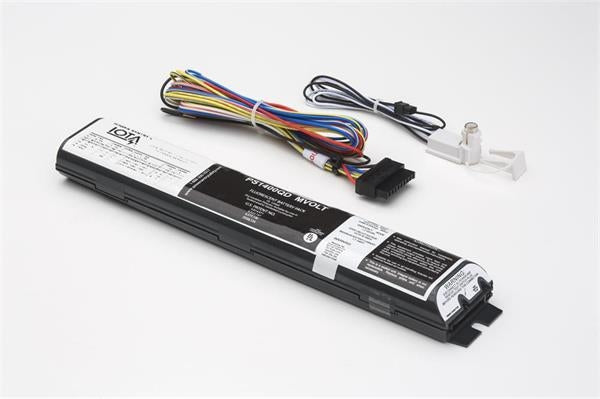

PS1400QD MVOLT Fluorescent Emergency Ballast
Free shipping on orders over $350. Get it shipped today - order within --:--:--
PS1400QD MVOLT Fluorescent Emergency Ballast
Description
Description
The Power Sentry PS1400QD MVOLT Emergency Ballast has been discontinued and is no longer available for purchase. For a suitable replacement, please contact your supplier or sales representative.
The Power Sentry PS1400QD MVOLT Emergency Ballast provides dependable emergency lighting for fluorescent fixtures, ensuring safety and compliance during power outages. Designed for one- or two-lamp operation, this reduced-profile ballast delivers 90 minutes of glare-free illumination, maintaining visibility and security in commercial and industrial environments. Its compact design fits within fixture wireways or mounts externally with an optional enclosure, offering versatile installation options without sacrificing space.
Engineered for performance and convenience, the PS1400QD MVOLT features a quick-disconnect wiring system for fast end-of-life replacement, a sealed nickel-cadmium battery with automatic recharge, and a high-efficiency push-pull inverter for optimal light output and battery performance. Compatible with T5, T5HO, T8, CFL, U-Lamps, PL, and triple-tube lamps, this UL 924 listed ballast is compliant with NFPA 101, NEC, and OSHA standards, making it a reliable solution for facilities requiring code-compliant emergency lighting.
Key Features / Benefits
-
Reliable Emergency Illumination: Provides 90 minutes of consistent backup lighting during power outages.
-
Versatile Lamp Compatibility: Supports T5, T5HO, T8, CFL, U-Lamps, PL, and triple-tube types for flexible fixture use.
-
Compact, Reduced-Profile Design: Fits within fixture wireways or mounts externally with optional enclosure.
-
Long-Life Battery: Sealed nickel-cadmium battery with 7–9 year service life and automatic 24-hour recharge.
-
Code-Compliant and Safe: UL 924 listed, NFPA 101, NEC, and OSHA compliant; durable thermoplastic/metal housing with UL-94V-0 flame rating.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | PS1400QD MVOLT |
| Input Voltage | 120V–277V, 50/60 Hz |
| Input Power | 3.3W @ 120V, 3.2W @ 277V |
| Output Type | High-efficiency push-pull inverter (DC to AC) |
| Battery Type | Sealed Nickel-Cadmium (Ni-Cad) |
| Battery Voltage | 9.4V |
| Battery Shelf Life | 3 years (at 77°F) |
| Battery Service Life | 7–9 years typical |
| Recharge Time | 24 hours max |
| Emergency Runtime | 90 minutes |
| Lumen Output (Initial) | 700–1450 lumens depending on lamp type |
| Compatible Lamps | T5, T5HO, T8 (17W–40W), U-Lamp, PL Twin/Quad/Triple Tube, CFL, 96" T8HO |
| Compatible Ballasts | Instant Start, Rapid Start, Slimline |
| Charging Circuit | Constant current charger |
| Mounting | Internal or external (requires ELA PSRME for remote) |
| Mounting Dimensions | 13-5/16" L × 2-3/16" W × 1-3/16" H |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Shipping Weight | 2.0 lbs (0.68 kg) |
| Housing | Durable thermoplastic/metal (UL-94V-0 rated) |
| Test Switch | Quick-connect pilot light/test switch |
| Certifications & Compliance | UL 924, NFPA 101, NEC, OSHA, UL for sealed/gasketed fixtures |
| Warranty | 5-year limited warranty |
