eldoLED Casambi BT-L2E1 Two Channel Dimming of Intensity

Experience the industry-leading eldoLED Quality of Light with this digitally integrated BLE radio package. Designed for seamless Casambi wireless control and Bluetooth Low Energy (BLE) beaconing, this radio offers simple 2-wire digital integration with eldoLED drivers via the LEDcode2 interface.

This combination enables effortless inclusion into Casambi BLE lighting control mesh networks while simplifying the integration and certification process for your luminaire system.

Key Features

• Casambi Ready: Native wireless mesh networking for professional-grade lighting ecosystems.

• Profile ID 5402: Specifically configured for two-channel dimming of light intensity.

• Deep Dimming Precision: Supports ultra-fine dimming ranges from 100% down to 0.1% (SOLOdrive/DUALdrive) or 1% (ECOdrive).

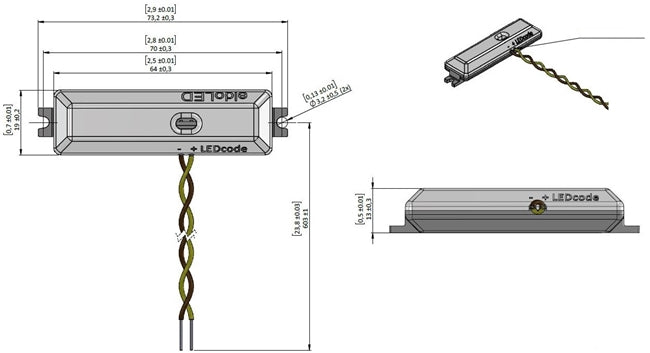

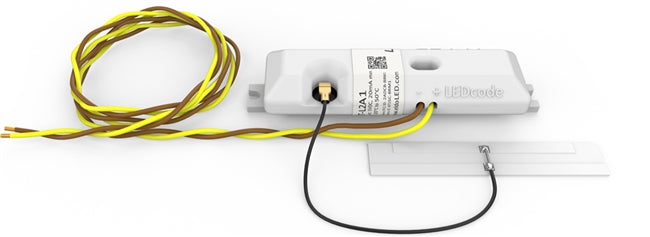

• LEDcode2 Integration: Low-voltage, 2-wire digital connection significantly reduces wiring complexity.

• Fail-Safe Wiring: Intelligent polarity protection prevents damage from incorrect wiring of incoming LEDcode lines.

Electrical & Wireless Specifications

Control Characteristics

• Control Channels: * 1 Channel: SOLOdrive & ECOdrive

  • 2 Channels: DUALdrive & Lightshape

• Protocol: LEDcode2

• Dimming Performance:

  • SOLOdrive / DUALdrive: 100% – 0.1%

  • ECOdrive: 100% – 1%

Standards & Compliance

• Safety: EN 62368-1:2014, EN 62479:2010

• Radio & EMC: EN301 489-1/17, EN300 328 V2.1.1, 47 CFR Part 15.247

• Bluetooth: Qualification & Declaration ID: D037520 (IC 6715C-BRM1)

• Environmental: RoHS2 and REACH (Art.33) compliant

• Surge Immunity: ANSI C63.4:2014

Technical Installation Note

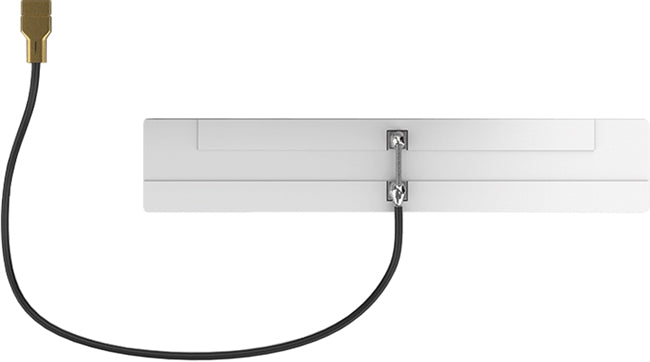

The 25-meter operating range is based on a clear line of sight. Please note that transmit power and local environmental factors (such as mounting inside metal enclosures) will influence the actual effective range.
