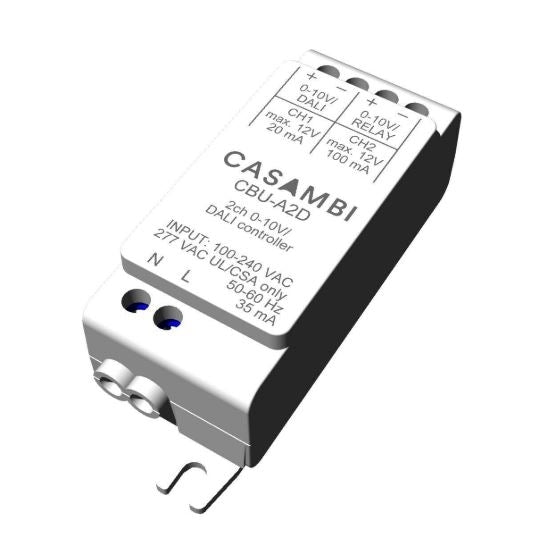

Casambi CBU-A2D Bluetooth Controller
Description
Description
CBU-A2D is a Bluetooth controllable, Casambi enabled 2 channel 0-10V/DALI controller. CBU-A2D has a universal 100-277 VAC input voltage range. CBU-A2D CBU-A2D can control one or two 0-10V controllable LED drivers, or it can control a tunable white LED driver with two 0-10V control interfaces. The product can also be configured into a DALI mode where it can be connected to a DALI LED driver or DALI sensor for the presence and/or daylight harvesting functions.
CBU-A2D can be controlled with Casambi app which can be downloaded free of charge from Apple App Store and Google Play Store.
Different Casambi enabled products can be used from a simple one luminaire direct control to a complete and full-featured light control system where up to 250 units form automatically an intelligent mesh network.
Features:
- Casambi enabled 2 channel 0-10V/DALI controller
- Universal 100- 277 VAC input voltage range
- Control one or two 0-10V controllable LED drivers, or it can control a tunable white LED driver with two 0-10V control interfaces
- The product can also be configured into a DALI mode where it can be connected to a DALI LED driver or DALI sensor for presence and/or daylight harvesting functions
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Voltage Range | 100-240 VAC (CE/UL/CSA) 277 VAC (UL/CSA only) |
| Frequency | 50-60 Hz |
| Max. mains current | 35 mA |
| No-load standby power | <0,5 W |
| Channel 1 output | Output voltage, 0-10V 0-10 VDC, max. 7 mA (sinking) Output voltage, DALI 12 VDC, max. 20 mA (sourcing) Maximum number of drivers: 1 driver + 1 sensor/push button |
| Channel 2 output | Output voltage, 0-10V: 0-10 VDC, max. 7 mA (sinking) Output voltage, relay control: 12 VDC, max. 100 mA (sourcing) Maximum number of drivers: 1 |
| Dimensions | 76,0 x 26,0 x 23,0 mm 3.0 x 1.0 x 0.9 inch |
| ProtectionIP20 | Built-in Class II |
