Casambi CBU-ASR Bluetooth Controller
Description
Description

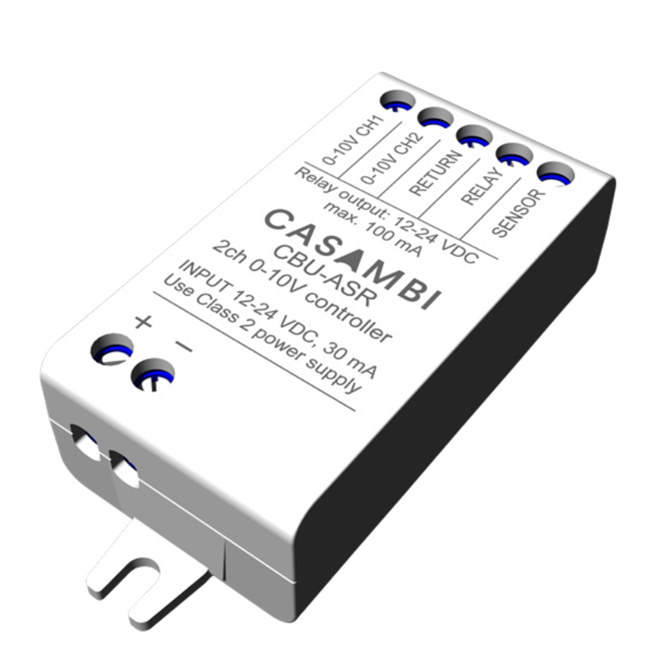

The CBU-ASR is a Bluetooth-controllable, Casambi-enabled two-channel 0-10V controller designed for dimmable LED loads and luminaires. Powered by an external 12–24 VDC Class 2 power supply, the CBU-ASR can operate two channels simultaneously, making it an ideal solution for tunable white (TW) applications. Each channel can also be configured to operate independently.
The device features:
-

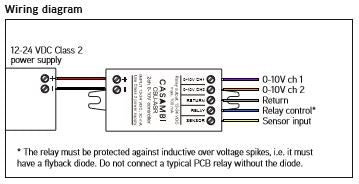

Control port for an external relay
-
Sensor input for occupancy or light sensors
-
Protection against overvoltage, overcurrent, and short circuits
When integrated with other Casambi-enabled products, the CBU-ASR can scale from controlling a single luminaire to forming a full-featured intelligent lighting system, where up to 127 units automatically form a mesh network. Casambi supports nearly unlimited mesh networks within a single installation site.
The system can be controlled using the Casambi app, available for free on the Apple App Store and Google Play Store, or via timers, Casambi-enabled sensors (PIR/occupancy, lux sensors), Casambi Xpress, and EnOcean switches.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Input Voltage | 12-24 VDC, Class 2 |
| 0-10V Output | 0-10 VDC, adjustable |
| Max Output Current | 5 mA per channel |
| Channels | 2 (independent or tunable white) |
| Relay Output | 12-24 VDC, Max 100 mA |
| Sensor Input | Supports external sensor, Max 24 VDC |
| Wireless | Bluetooth, Casambi enabled, 2.4 GHz |
| Operating Temperature | ta: -25~45°C (tc: 75°C) |
| Storage Temperature | -25~75°C |
| Humidity | 0~80%, non-condensing |

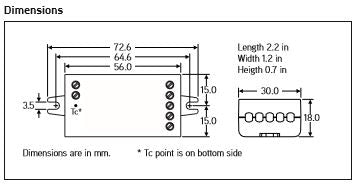

| Dimensions | 72.6×30×18 mm (2.2×1.2×0.7 in) |
| Weight | 23 g (0.8 oz) |
| Certifications | FCC, IC, UL Listed, UL Plenum Rated |
