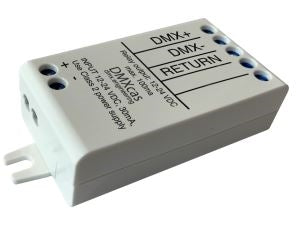

Casambi DMXcas Bluetooth Controller
Description
Description
DMXcas is a Bluetooth controllable, Casambi enabled, four channel DMX-512 dimmer that allows connection of a standard DMX-512 master controller to a Casambi network. While the casDMX is intended to connect to fixtures, the DMXcas is the “other side”, allowing for standard DMX controllers to be utilized with Casambi networks.

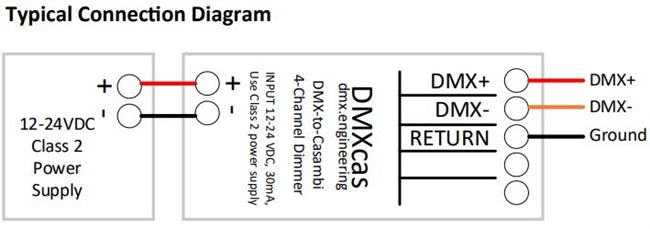

The DMXcas is connected between a 12-24 VDC Class 2 power supply, and a DMX master.
DMXcas can implement up to four Casambi pushbutton devices, making it an ideal partner for RGBW and tunable white (TW) applications. Multiple DMXcas devices can be used in the same network to control different fixtures, channels or zones since the 4 channels of control can be mapped using the Casambi mobile application.
The unit acts like a Casambi button, and can be mapped to a fixture or channel. Different Casambi enabled products can be used from a simple one luminaire direct control to a complete and full featured light control system where up to 127 units form automatically an intelligent mesh network.
Technical Data
DMX-512 Input: 3-wire non-isolated DMX-512
Radio transceiver Operating frequencies: 2.401-2.483 Ghz Maximum output power: typ. +0 dBm, +/-3dBm
Operating conditions:
Ambient temperature, ta: -13...+113°F (-25...+45°C)
Max. case temperature, tc: +167°F (+75°C)
Storage temperature: -13...+167°F (-25...+75°C)
Max. relative humidity: 0...80%, non-cond.
Connectors
Wire range, solid & stranded: 0.5 - 1.5 mm2
14 - 22 AWG Wire strip length: .25” (6 - 7 mm)
Tightening force: 0.4 Nm / 2.6 Lb-in
Certifications
FCC ID: 2ALA3-CBM002A IC: 22496-CBM002A
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Input Voltage | 12-24 VDC, Class 2 |
| No-load Input Current | 30 mA |
| DMX-512 Output | 3-wire non-isolated DMX-512 |
| Radio Operating Frequencies | 2.401–2.483 GHz |
| Radio Max Output Power | Typ. +0 dBm, ±3 dBm |
| Wire Range (solid & stranded) | 0.5–1.5 mm² / 14–22 AWG |
| Wire Strip Length | 6–7 mm (0.25 in) |
| Tightening Force | 0.4 Nm / 2.6 lb-in |
| Ambient Temperature | ta: -25~45°C (-13~113°F) |
| Max Case Temperature | tc: 75°C (167°F) |
| Storage Temperature | -25~75°C (-13~167°F) |
| Max Relative Humidity | 0~80%, non-condensing |
