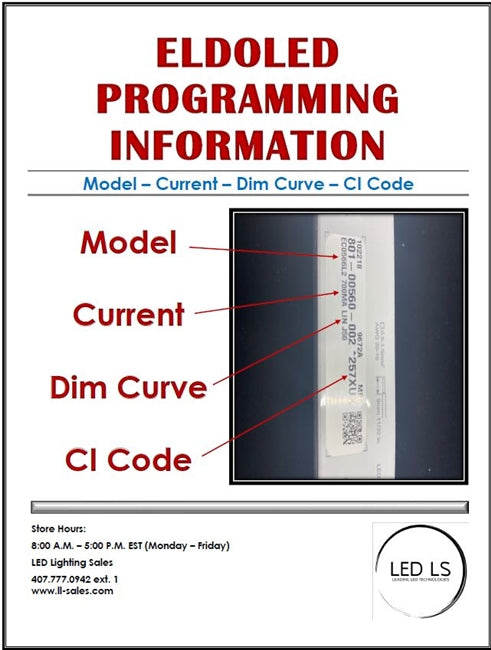

Click on image above to locate CI Code
Free shipping on orders over $350.
eldoLED ECOdrive 160/B 10W DALI LED Driver
Description
Description

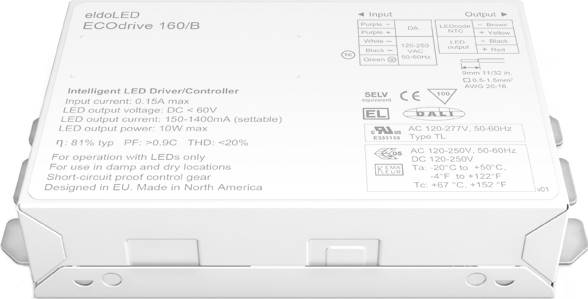

The eldoLED ECOdrive 160/B is a 10W DALI-2-certified LED driver designed for high-performance, flicker-free dimming down to 1% light output. Utilizing HydraDrive technology, it ensures smooth brightness changes and excellent dimming quality for LED fixtures. With LEDcode2 support, this driver enables integration with digital accessories and location-based IoT applications, providing flexible wired and wireless control options.
Highlights:
-
ECOdrive, 10W, DALI
-
1 control channel, constant current
-
1 × 55V LED output
-
Bottom feed, metal square form factor
-
Natural dimming to 1%, smooth brightness changes
-
LEDcode2 for peripheral device integration
-
Camera-friendly, flicker-free dimming
Features:
-
Natural dimming: Smooth brightness changes, configurable minimum dimming level
-
LEDcode2: Connects to integrated digital accessories and IoT-enabled applications
-
Programmable: Fine-tune your driver for any application
-
Performance: Universal input voltage, low inrush current and THD, high power factor and efficiency
-
Camera compatibility: Proven performance for TV studios and security camera environments
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Driver Type | Constant Current |
| LED Outputs | 1 (UL Class 2) |
| Max LED Output Power | 10 W |
| Programmable LED Current | 150–1400 mA (1 mA increments) |
| LED Output Voltage Range | 2–55 V |
| Input Voltage (AC) | 120–250 V (ENEC), 120–277 V (UL) |
| Input Voltage (DC) | 120–250 V |
| Control Protocol | DALI-2 Device Type 6, LEDcode2 |
| Control Channels | 1 |
| Dimensions (L×W×H) | 130 × 70.9 × 28.5 mm (5.12 × 2.79 × 1.12 in) |
| Weight | 285.5 g |
