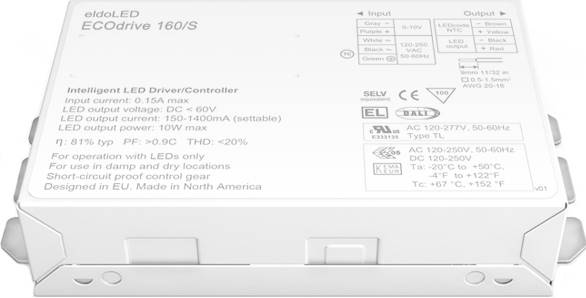

eldoLED ECOdrive 160/S 10W DALI LED Driver
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 1%
Click on image above to locate CI Code
Free shipping on orders over $350.
eldoLED ECOdrive 160/S 10W DALI LED Driver
Description
Description
The eldoLED ECOdrive 160/S is a 10W DALI-2-certified LED driver engineered to deliver industry-leading flicker-free dimming down to 1%. Equipped with HydraDrive technology, it provides smooth, high-performance dimming for standard LED fixtures. With LEDcode2 support, this driver allows integration with digital accessories, IoT-enabled applications, and wired or wireless lighting control, making it ideal for both architectural and studio lighting applications.
Highlights:
-
ECOdrive, 10W, DALI
-
1 control channel, constant current
-
1 × 55V LED output
-
Side feed, metal square form factor
-
Smooth flicker-free dimming to 1%
-
LEDcode2 for peripheral device integration
-
Camera-friendly performance
Features:
-
Natural dimming: Smooth brightness changes, configurable minimum dimming level
-
LEDcode2: Connects to integrated digital accessories and supports location-based IoT applications
-
Programmable: Fine-tune driver settings for any application
-
Performance: Universal input voltage, low inrush current, low THD, high power factor and efficiency
-
Camera compatibility: Hybrid HydraDrive proven for TV studios and security camera environments
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Driver Type | Constant Current |
| LED Outputs | 1 (UL Class 2) |
| Max LED Output Power | 10 W |
| Programmable LED Current | 150–1400 mA (1 mA increments) |
| LED Output Voltage Range | 2–55 V |
| Input Voltage (AC) | 120–250 V (ENEC), 120–277 V (UL) |
| Input Voltage (DC) | 120–250 V |
| Control Protocol | DALI-2 Device Type 6, LEDcode2 |
| Control Channels | 1 |
| Dimensions (L×W×H) | 130 × 70.9 × 28.5 mm (5.12 × 2.79 × 1.12 in) |
| Weight | 285.5 g |
