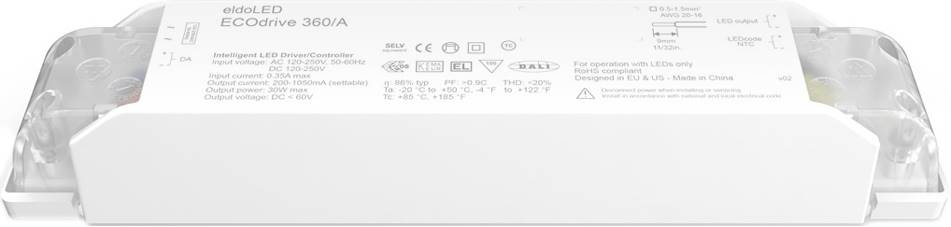

eldoLED ECOdrive 360/A 30W DALI-2 LED Driver
Description
Description
The ECOdrive 360/A 30W LED driver is a DALI-2 certified, constant current solution designed for professional architectural and commercial lighting applications. Built for independent installations, it features a plastic long housing with integrated end caps that function as wire restraints, improving safety and simplifying installation.
This driver delivers smooth, flicker-free dimming down to 1 percent using Hybrid HydraDrive technology. It is well suited for camera-sensitive environments such as broadcast spaces, retail lighting, security applications, and high-end architectural projects.
The ECOdrive 360/A supports precise output current programming, allowing one driver to be configured for multiple LED fixtures. This flexibility helps reduce inventory, shorten lead times, and streamline project planning. Built-in support for DALI-2 and LEDcode2 enables advanced digital lighting control and compatibility with intelligent accessories and IoT-ready systems.
Key features and benefits include:
• 30W constant current LED driver for commercial and architectural lighting
• DALI-2 Device Type 6 certification for reliable digital control
• Smooth dimming performance down to 1 percent with no visible flicker
• Hybrid HydraDrive technology for camera-friendly operation
• Programmable output current in 1mA increments
• LEDcode2 connectivity for wired and wireless lighting control
• Plastic long form factor with integrated wire restraint end caps
• NTC interface for reliable thermal management
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | EC0360A5 |
| Driver Type | Constant current |
| Maximum Output Power | 30W |
| LED Output Current Range | 150 to 1400mA |
| LED Output Current Resolution | Programmable in 1mA increments |
| LED Output Voltage Range | 2 to 55V |
| Number of LED Outputs | 1 UL Class 2 |
| Input Voltage Range AC | 120 to 250V ENEC, 120 to 277V UL |
| Input Voltage Range DC | 120 to 250V |
| Control Protocol | DALI-2 Device Type 6 and LEDcode2 |
| Control Channels | 1 |
| Dimming Range | Down to 1 percent |
| Flicker Performance | Flicker-free, camera-friendly |
| Technology | Hybrid HydraDrive |
| Thermal Protection | NTC interface |
| Form Factor | Plastic long housing |
| Feed Type | Side feed |
| Length | 210mm |
| Width | 40.4mm |
| Height | 33.5mm |
| Weight | 225g |
