eldoLED ECOdrive 360/B 30W DALI-2 LED Driver
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 1%
Click on image above to locate CI Code
Free shipping on orders over $350.

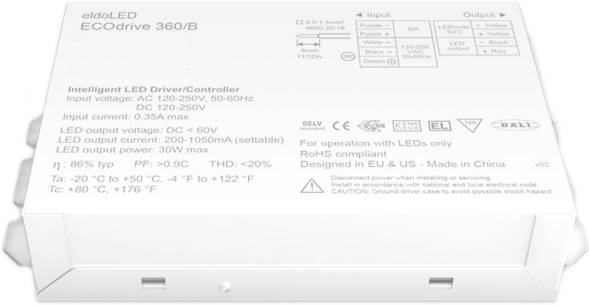

eldoLED ECOdrive 360/B 30W DALI-2 LED Driver
Description
Description
The eldoLED ECOdrive 360/B is a 30W constant current LED driver engineered for professional architectural and commercial lighting applications. DALI-2 certified and built in a compact metal square housing, it is designed to deliver precise, reliable lighting control in demanding environments.
Powered by Hybrid HydraDrive technology, the ECOdrive 360/B provides smooth, flicker-free dimming down to 1 percent light output. This makes it ideal for camera-sensitive installations such as broadcast studios, retail spaces, museums, and security-focused applications where visual comfort and performance are critical.
With programmable output current and advanced digital control capabilities, the ECOdrive 360/B allows a single driver to support a wide range of LED fixtures. LEDcode2 connectivity enables integration with intelligent accessories and IoT-ready lighting systems, helping reduce inventory complexity while increasing system flexibility.
Key features and benefits include:
• 30W constant current LED driver for professional lighting systems
• DALI-2 Device Type 6 certification for digital lighting control
• Smooth, flicker-free dimming down to 1 percent
• Hybrid HydraDrive technology for camera-friendly performance
• Programmable output current in 1mA increments
• LEDcode2 support for wired and wireless lighting control
• Metal square housing with bottom feed for compact installations
• Universal AC and DC input voltage support
• High efficiency with low inrush current and low harmonic distortion
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | EC0360B3 |
| Driver Type | Constant current |
| Maximum Output Power | 30W |
| LED Output Current Range | 150 to 1400mA |
| LED Output Current Resolution | Programmable in 1mA increments |
| LED Output Voltage Range | 2 to 55V |
| Number of LED Outputs | 1 UL Class 2 |
| Input Voltage Range AC | 120 to 250V ENEC, 120 to 277V UL |
| Input Voltage Range DC | 120 to 250V |
| Control Protocol | DALI-2 Device Type 6, LEDcode2 |
| Control Channels | 1 |
| Dimming Range | Down to 1 percent |
| Flicker Performance | Flicker-free, camera-friendly |
| Technology | Hybrid HydraDrive |
| Form Factor | Metal square housing |
| Feed Type | Bottom feed |
| Length | 130mm |
| Width | 72mm |
| Height | 34.4mm |
| Weight | 285.5g |
