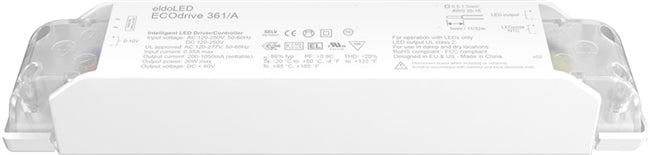

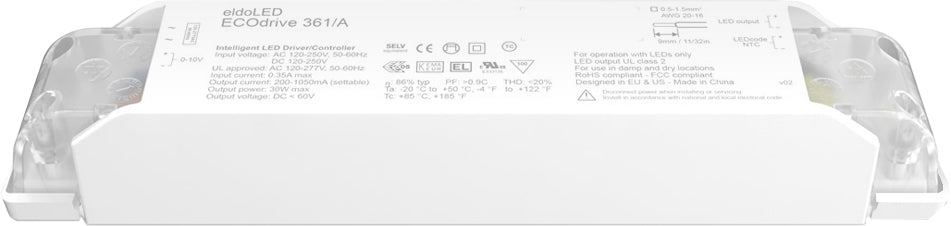

eldoLED ECOdrive 361/A Constant Current LED Driver, 30W, 0-10V
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 1%

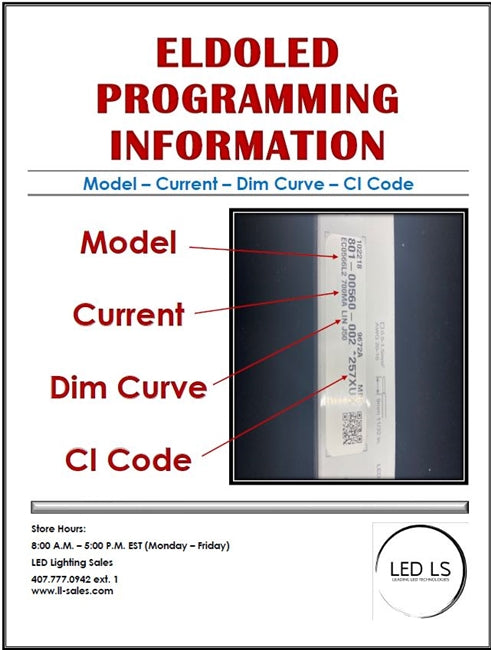

Click on image above to locate CI Code
Free shipping on orders over $350.
eldoLED ECOdrive 361/A Constant Current LED Driver, 30W, 0-10V
Description
Description
The eldoLED ECOdrive 361/A is a 30W constant current LED driver compatible with 0-10V dimming systems. It delivers smooth, flicker-free dimming down to 1 percent, providing reliable performance for professional architectural, commercial, and camera-sensitive lighting applications.
Designed with a plastic long housing and side feed wiring, the ECOdrive 361/A is compact and easy to install. Hybrid HydraDrive technology ensures consistent, high-quality light output, making it ideal for broadcast studios, retail spaces, museums, and security environments.
The driver supports configurable output current, allowing it to work with a wide range of LED modules and arrays. With LEDcode connectivity, it also provides a connection point for integrated digital controls and IoT-ready lighting systems, offering flexibility and reducing inventory complexity.
Key features and benefits include:
• 30W constant current LED driver compatible with 0-10V dimming
• Smooth, flicker-free dimming down to 1 percent
• Hybrid HydraDrive technology for camera-friendly operation
• Programmable output current in 1mA increments
• LEDcode connectivity for wired and wireless digital lighting control
• Plastic long housing with side feed for easy installation
• Universal AC and DC input voltage support
• High efficiency with low inrush current and low total harmonic distortion
• Compatible with a wide range of LED modules and intelligent fixtures
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | EC0361A5 |
| Driver Type | Constant current |
| Maximum Output Power | 30W |
| LED Output Current Range | 150 to 1400mA |
| LED Output Current Resolution | Programmable in 1mA increments |
| LED Output Voltage Range | 2 to 55V |
| Number of LED Outputs | 1 UL Class 2 |
| Input Voltage Range AC | 120 to 250V ENEC, 120 to 277V UL |
| Input Voltage Range DC | 120 to 250V |
| Control Protocol | 0-10V, LEDcode |
| Control Channels | 1 |
| Dimming Range | Down to 1 percent |
| Flicker Performance | Flicker-free, camera-friendly |
| Technology | Hybrid HydraDrive |
| Form Factor | Plastic long housing |
| Feed Type | Side feed |
| Length | 210mm |
| Width | 40mm |
| Height | 33.5mm |
| Weight | 204g |
