eldoLED ECOdrive 361/M Constant Current LED Driver, 30W, 0-10V
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 1%

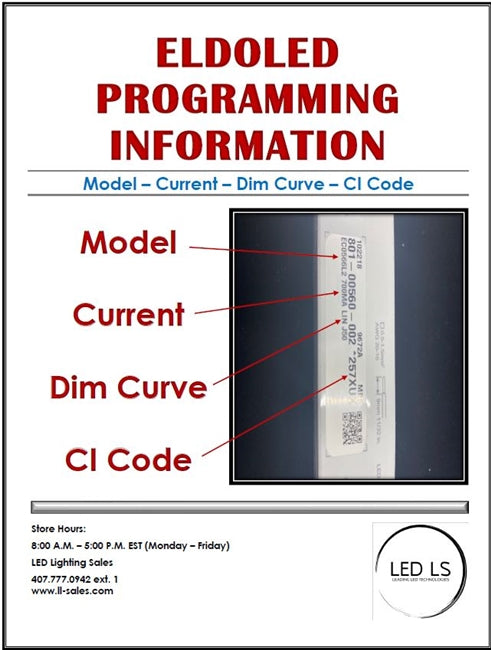

Click on image above to locate CI Code
Free shipping on orders over $350.

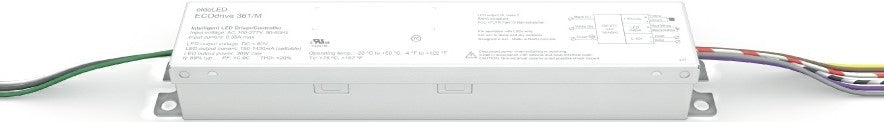

eldoLED ECOdrive 361/M Constant Current LED Driver, 30W, 0-10V
Description
Description
The eldoLED ECOdrive 361/M is a 30W constant current LED driver compatible with 0-10V dimming systems. Its long metal housing with flying leads makes it easy to integrate into a variety of fixtures and installations. Hybrid HydraDrive technology ensures smooth, flicker-free dimming down to 1 percent, making it ideal for camera-sensitive environments, including studios and broadcast applications.
Designed for professional lighting systems, the ECOdrive 361/M delivers high efficiency, low inrush current, and low total harmonic distortion. Its programmable output current allows the driver to be fine-tuned for a wide range of LED modules, offering flexibility while reducing inventory complexity.
Key features and benefits include:
• 30W constant current LED driver compatible with 0-10V dimming
• Smooth, flicker-free dimming down to 1 percent using Hybrid HydraDrive
• Flying leads for easy integration in various fixture types
• Long metal housing for durability and thermal performance
• Programmable output current to suit multiple applications
• High efficiency and low total harmonic distortion
• Compatible with HD studio cameras and sensitive environments
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | EC0361M2 |
| Driver Type | Constant current |
| Maximum Output Power | 30W |
| LED Output Current Range | 150 to 1400mA |
| LED Output Voltage Range | 2 to 55V |
| Number of LED Outputs | 1 UL Class 2 |
| Input Voltage Range AC | 120 to 277V UL |
| Control Protocol | 0-10V |
| Control Channels | 1 |
| Form Factor | Long metal housing with flying leads |
| Length | 240mm |
| Width | 42mm |
| Height | 30mm |
| Weight | 400g / 14.1 oz |
