eldoLED ECOdrive 361/S Constant Current LED Driver, 30W, 0-10V
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 1%

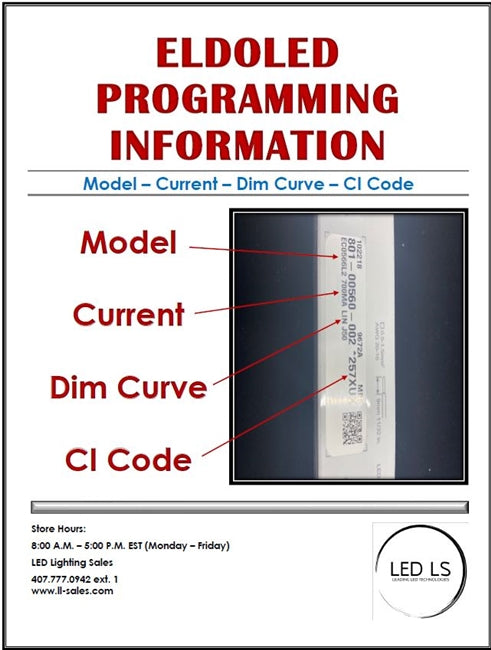

Click on image above to locate CI Code
Free shipping on orders over $350.

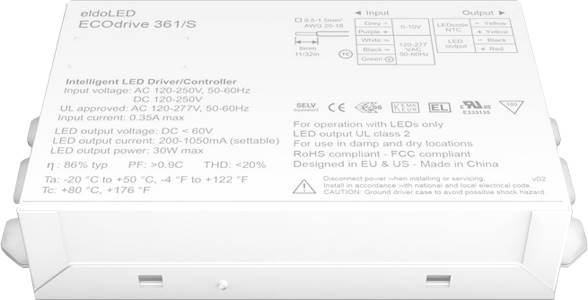

eldoLED ECOdrive 361/S Constant Current LED Driver, 30W, 0-10V
Description
Description
The eldoLED ECOdrive 361/S is a 30W constant current LED driver compatible with 0-10V dimming systems. Its metal square housing with side feed wiring makes installation simple and reliable. Hybrid HydraDrive technology ensures smooth, flicker-free dimming down to 1 percent, delivering consistent, high-quality light output for professional lighting applications, including studios, retail spaces, museums, and security-sensitive environments.
This driver supports programmable output current, allowing it to work with a wide variety of LED modules and arrays. LEDcode connectivity enables integration with intelligent accessories and IoT-ready lighting systems, providing flexibility while reducing inventory complexity.
Key features and benefits include:
• 30W constant current LED driver compatible with 0-10V dimming
• Smooth, flicker-free dimming down to 1 percent using Hybrid HydraDrive
• Side feed wiring for easy installation in fixtures
• Metal square housing for durable, compact integration
• Programmable output current in 1mA increments
• LEDcode connectivity for wired and wireless lighting control
• Universal AC and DC input voltage range
• High efficiency with low inrush current and low total harmonic distortion
• Suitable for camera-sensitive and professional environments
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | EC0361S3 |
| Driver Type | Constant current |
| Maximum Output Power | 30W |
| LED Output Current Range | 150 to 1400mA |
| LED Output Current Resolution | Programmable in 1mA increments |
| LED Output Voltage Range | 2 to 55V |
| Number of LED Outputs | 1 |
| Input Voltage Range AC | 120 to 250V ENEC, 120 to 277V UL |
| Input Voltage Range DC | 120 to 250V |
| Control Protocol | 0-10V, LEDcode |
| Control Channels | 1 |
| Form Factor | Metal square housing |
| Feed Type | Side feed |
| Length | 130mm |
| Width | 72mm |
| Height | 28mm |
| Weight | 285.5g |
