eldoLED ECOdrive 365/L 30W DALI-2 LED Driver
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 1%
Click on image above to locate CI Code
Free shipping on orders over $350.

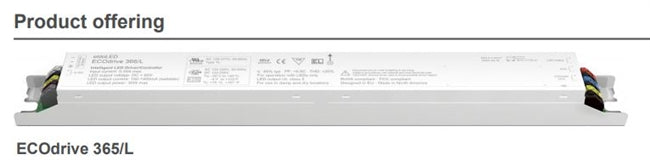

eldoLED ECOdrive 365/L 30W DALI-2 LED Driver
Description
Description
The eldoLED ECOdrive 365/L is a 30W constant current LED driver that is DALI-2 certified with AUX support, designed for professional architectural and commercial lighting applications. Its long metal housing with side feed wiring ensures easy installation while delivering reliable, high-performance dimming for LED fixtures.
Hybrid HydraDrive technology enables smooth, flicker-free dimming down to 1 percent, making it ideal for camera-sensitive environments such as studios, retail spaces, museums, and security applications. Programmable output current allows one driver to work across a wide range of LED modules, while LEDcode2 connectivity supports integration with intelligent accessories and IoT-ready lighting systems.
Key features and benefits include:
• 30W constant current LED driver compatible with DALI-2 and AUX control
• Smooth, flicker-free dimming down to 1 percent with Hybrid HydraDrive
• Long metal housing with side feed for easy installation
• Programmable output current in 1mA increments
• LEDcode2 support for wired and wireless lighting control
• Universal AC and DC input voltage range
• High efficiency with low inrush current and low total harmonic distortion
• Suitable for professional and camera-sensitive lighting environments
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | EC0365L3 |
| Driver Type | Constant current |
| Maximum Output Power | 30W |
| LED Output Current Range | 150 to 1400mA |
| LED Output Current Resolution | Programmable in 1mA increments |
| LED Output Voltage Range | 2 to 55V |
| Number of LED Outputs | 1 UL Class 2 |
| Input Voltage Range AC | 120 to 250V ENEC, 120 to 277V UL |
| Input Voltage Range DC | 120 to 250V |
| Control Protocol | DALI-2 Device Type 6, LEDcode2 |
| Control Channels | 1 |
| Form Factor | Long metal housing |
| Feed Type | Side feed |
| Length | 320mm |
| Width | 30mm |
| Height | 26mm |
| Weight | 275g |
