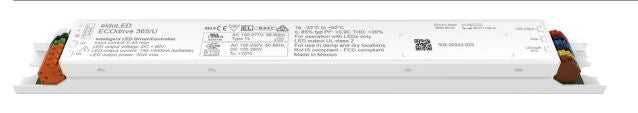

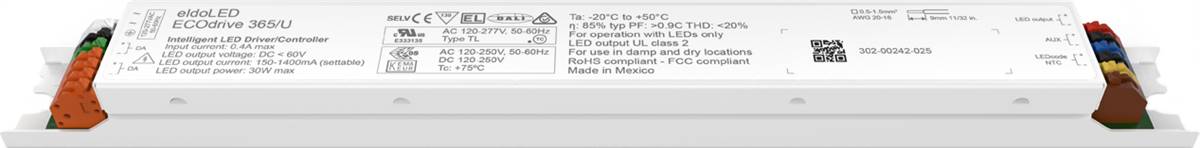

eldoLED ECOdrive 365/U 30W DALI-2 LED Driver
Description
Description
The eldoLED ECOdrive 365/U is a 30W constant current LED driver, DALI-2 certified with AUX support, designed for professional lighting applications. Its long metal housing with side feed wiring ensures reliable installation and compatibility with a wide range of LED fixtures.
Using Hybrid HydraDrive technology, the ECOdrive 365/U provides smooth, flicker-free dimming down to 1 percent, making it ideal for camera-sensitive environments, including studios, retail spaces, and security-focused applications. Programmable output current allows one driver to support multiple fixture types, while LEDcode2 connectivity enables integration with intelligent accessories and IoT-enabled lighting systems.
Key features and benefits include:
• 30W constant current LED driver compatible with DALI-2 and AUX control
• Smooth, flicker-free dimming down to 1 percent using Hybrid HydraDrive
• Long metal housing with side feed for easy installation
• Programmable output current in 1mA increments
• LEDcode2 support for wired and wireless digital lighting control
• Universal AC and DC input voltage range
• High efficiency with low inrush current and low total harmonic distortion
• Suitable for professional and camera-sensitive lighting applications
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | EC0365U2 |
| Driver Type | Constant current |
| Maximum Output Power | 30W |
| LED Output Current Range | 150 to 1400mA |
| LED Output Current Resolution | Programmable in 1mA increments |
| LED Output Voltage Range | 2 to 55V |
| Number of LED Outputs | 1 UL Class 2 |
| Input Voltage Range AC | 120 to 250V ENEC, 120 to 277V UL |
| Input Voltage Range DC | 120 to 250V |
| Control Protocol | DALI-2 Device Type 6, LEDcode2 |
| Control Channels | 1 |
| Form Factor | Long metal housing |
| Feed Type | Side feed |
| Length | 280mm |
| Width | 30mm |
| Height | 21mm |
| Weight | 220g |
