eldoLED ECOdrive 366/L Constant Current LED Driver, 30W, 0-10V
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 1%

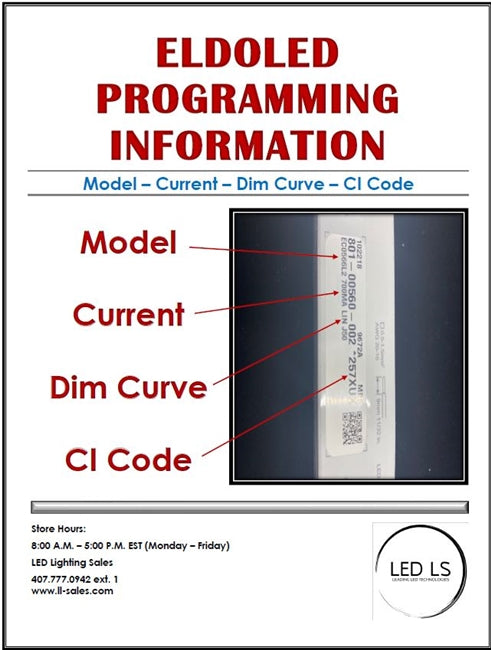

Click on image above to locate CI Code
Free shipping on orders over $350.
eldoLED ECOdrive 366/L Constant Current LED Driver, 30W, 0-10V
Description
Description

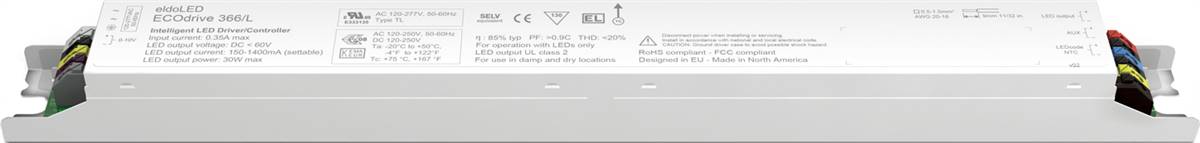

The eldoLED ECOdrive 366/L (EC0366L3) is a 30W constant current LED driver compatible with 0–10V dimming systems. Designed for professional commercial and architectural lighting applications, it delivers smooth, flicker-free dimming down to 1 percent. The driver’s long metal housing with side-feed wiring and AUX output makes it ideal for intelligent luminaires and adaptable lighting systems.
Hybrid HydraDrive technology ensures ultra-smooth, camera-friendly dimming suitable for broadcast environments, retail, museums, or any space where consistent light quality is critical. The programmable output current provides flexibility across multiple LED fixtures, and integrated protections ensure reliable operation over the driver’s lifetime.
Key Features
• 0–10V dimming to 1% with multiple curve options (log, linear, square, soft-linear)
• Hybrid HydraDrive for flicker-free, camera-friendly performance
• Programmable output current: 150–1400mA with 1mA resolution
• LED output voltage: 2–55VDC
• AUX output: 15.5–25VDC, 18mA max for intelligent devices
• 1 control channel + LEDcode / NTC thermistor input
• High power factor (>0.9) and low THD (<20%)
• Thermal foldback, short circuit, and overload protection
• Wide AC input voltage: 120–277VAC
• FCC Class B, UL 8750 & UL 1310 recognized
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Product Code | EC0366L3 |
| Driver Type | Constant current |
| Maximum Output Power | 30W |
| LED Output Current Range | 150–1400mA |
| LED Output Current Resolution | 1mA |
| LED Output Voltage Range | 2–55VDC |
| Number of LED Outputs | 1 UL Class 2 |
| AUX Output | 15.5–25VDC, max 18mA |
| Input Voltage Range AC | 120–277V (108–305V absolute) |
| Input Frequency | 50–60Hz |
| Input Current | 0.7A @ 120V / 0.3A @ 277V |
| Efficiency | 85% typical |
| Standby Power | <0.5W (no AUX load) |
| Surge Protection | 2kV differential & common mode |
| Inrush Current | <200mA²s |
| Power Factor | >0.9 |
| THD | <20% |
| Dimming Protocol | 0–10V (linear, log, soft-linear, square) |
| Control Channels | 1 |
| Thermal Protection | Thermal foldback via NTC |
| Operating Temperature | −20°C to +50°C |
| Maximum Case Temperature (Tc) | 75°C |
| Lifetime | 50,000 hours @ Tc ≤75°C |
| Acoustic Noise | <24 dBA (Class A) |
| Dimensions | 320 × 30 × 26 mm (12.6 × 1.18 × 1.02 in) |
| Mounting | 310mm center-to-center with 7.6mm holes |
| Weight | 275g |
| Connector Type | WAGO 250 push-in terminals |
| Remote Mount Distance | Up to 118 ft with AWG 16 |
| Certifications | UL 1310 & UL 8750 (Type TL, Class 2), FCC Part 15 Class B, RoHS3 & REACH, IEC/EN 60929 Annex E, EN 61000 series (EMI, surge, dips, ESD, EFT) |
