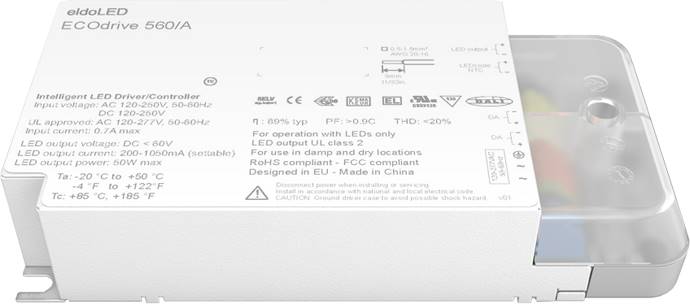

eldoLED ECOdrive 560/A 50W DALI-2 LED Driver
Description
Description
The eldoLED ECOdrive 560/A is a 50-Watt constant current LED driver designed for professional commercial and architectural lighting applications. It delivers ultra-smooth, flicker-free dimming down to 1% and supports both DALI-2 and Pulse dimming protocols. With LEDcode2 integration and Hybrid HydraDrive technology, this driver ensures camera-safe performance, low THD, and seamless control with advanced thermal and accessory management.
This programmable driver is ideal for applications requiring precise dimming, high efficiency, and robust protection features.
Key Features
• 50W constant current LED driver with DALI-2 & Pulse dimming support (Device Type 6)
• Flicker-free dimming to 1% with Hybrid HydraDrive technology
• Programmable output current: 150–1400mA with 1mA resolution
• LED output voltage: 2–55VDC, maximum power 50W
• Advanced LEDcode2 interface for thermal sensors and digital accessories
• Surge protection: 2kV DM/CM, standby power <0.5W, inrush <100mA²s
• High efficiency: 87.5%, power factor >0.95, THD <15%
• UL Class 2, ENEC, FCC Class B, RoHS3, REACH, and RCM compliant
• Camera-safe, low-flicker dimming ideal for studios and architectural lighting
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Driver Type | Constant current |
| Maximum Output Power | 50W |
| Programmable Output Current | 150–1400mA (1mA resolution) |
| LED Output Voltage Range | 2–55VDC |
| Dimming Control | DALI-2, Pulse |
| Dimming Range | 1–100% |
| Control Interface | LEDcode2 + Thermal Sensor |
| Input Voltage Range | 120–277VAC (108–305V absolute) |
| Input Frequency | 50–60Hz |
| Input Current | 0.65A @ 120V, 0.36A @ 230V, 0.30A @ 277V |
| Efficiency | 87.5% typical |
| Power Factor | >0.95 |
| THD | <15% |
| Standby Power | <0.5W |
| Inrush Current | <100mA²s |
| Number of LED Outputs | 1 |
| Form Factor | Plastic long housing |
| Dimensions (LxWxH) | 153 × 76.7 × 30.2 mm (6" × 3" × 1.2") |
| Mounting Center | 118mm (4.65") |
| Weight | 295g |
| Operating Temperature | −20°C to +50°C |
| Max Case Temp (Tc) | 75°C |
| Lifetime | 50,000 hours @ Tc 75°C |
| Acoustic Noise | Class A (<24 dBA) |
| Certifications | UL 1310 / UL 8750, ENEC, FCC Class B, RoHS3, REACH, RCM, ANSI C62.41 Surge 2.5kV DM/CM |
