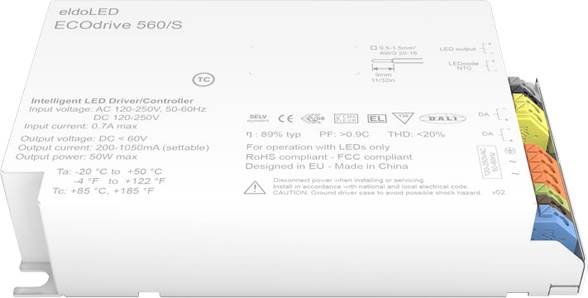

eldoLED ECOdrive 560/S 50W DALI-2 LED Driver
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 1%
Click on image above to locate CI Code
Free shipping on orders over $350.
eldoLED ECOdrive 560/S 50W DALI-2 LED Driver
Description
Description
The eldoLED ECOdrive 560/S is a 50-Watt DALI-2-certified LED driver engineered for commercial and architectural lighting applications. It delivers ultra-smooth, flicker-free dimming down to 1%, making it ideal for environments where precise light control and camera-safe performance are required. Featuring Hybrid HydraDrive technology and LEDcode2 integration, this driver ensures seamless interoperability with LED modules, controls, and intelligent in-luminaire devices.
Designed for flexibility, the ECOdrive 560/S allows fine-tuning of output current and dimming curves, delivering consistent performance with high efficiency, low THD, and universal input voltage compatibility.
Key Features
• DALI-2 certified LED driver with flicker-free dimming to 1%
• Hybrid HydraDrive technology for smooth, camera-safe dimming
• Programmable output current: 150–1400mA with 1mA resolution
• LED output voltage: 2–55VDC, maximum power 50W
• LEDcode2 interface supports thermal sensors and peripheral digital accessories
• Universal input voltage range (120–277VAC), low inrush, and high power factor
• Supports adaptable dimming curves and configurable minimum dimming levels
• Camera compatibility proven in TV studios and security environments
• Square metal side-feed form factor for easy installation
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Driver Type | Constant current |
| Number of LED Outputs | 1 (UL Class 2) |
| Maximum LED Output Power | 50W |
| Programmable LED Output Current Range | 150–1400mA |
| LED Output Type | Programmable in 1mA increments within specified range |
| LED Output Voltage Range | 2–55V |
| Input Voltage Range AC | 120–250V (ENEC), 120–277V (UL) |
| Input Voltage Range DC | 120–250V |
| Control Protocol | DALI-2 Device Type 6, LEDcode2 |
| Control Channels | 1 |
| Length (L) | 130 mm / 5.12 in |
| Width (W) | 76 mm / 2.83 in |
| Height (H) | 30 mm / 1.18 in |
| Weight | 350 g |
