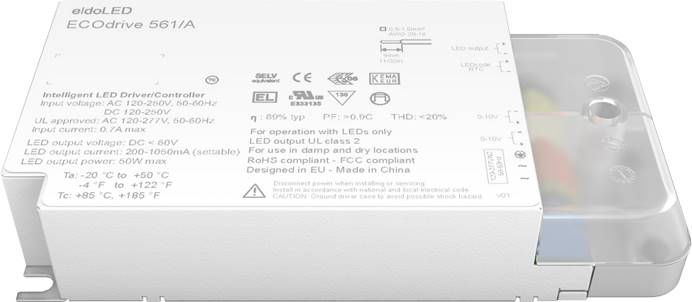

eldoLED ECOdrive 561/A Constant Current LED Driver, 50W, 0-10V
Description
Description
The eldoLED ECOdrive 561/A is a 50-Watt 0-10V LED driver designed for high-performance, flicker-free dimming down to 1%. Its Hybrid HydraDrive technology ensures smooth light output, making it ideal for commercial, architectural, and camera-sensitive lighting applications. The driver is compatible with most constant current LED modules and integrates seamlessly with peripheral controls through LEDcode, offering flexible programmability for any installation.
Its compact side-feed form factor (metal/plastic) allows easy installation, while universal input voltage compatibility, low THD, and high power factor ensure energy-efficient operation.
Key Features
• 0-10V dimming to 1% with smooth brightness transitions
• Hybrid HydraDrive for camera-safe, flicker-free dimming
• Programmable output current: 150–1400mA with 1mA resolution
• LED output voltage: 1.5–55VDC, maximum power 50W
• LEDcode interface for integrated peripheral controls
• Universal AC input voltage range (120–277V), low inrush, high efficiency
• Adaptable dimming curves with configurable minimum dimming level
• Seamless interoperability with LED modules, controls, and in-luminaire intelligent devices
• Camera compatibility proven in TV studios and security applications
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Driver Type | Constant current |
| Number of LED Outputs | 1 (UL Class 2) |
| Maximum LED Output Power | 50W |
| Programmable LED Output Current Range | 150–1400mA |
| LED Output Type | Programmable in 1mA increments within specified range |
| LED Output Voltage Range | 1.5–55V |
| Input Voltage Range AC | 120–250V (ENEC), 120–277V (UL) |
| Input Voltage Range DC | 120–250V |
| Control Protocol | 0-10V, LEDcode |
| Control Channels | 1 |
| Length (L) | 152.5 mm / 6 in |
| Width (W) | 76.2 mm / 3 in |
| Height (H) | 30.1 mm / 1.18 in |
| Weight | 298 g |
