eldoLED ECOdrive 561/B Constant Current LED Driver
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 1%

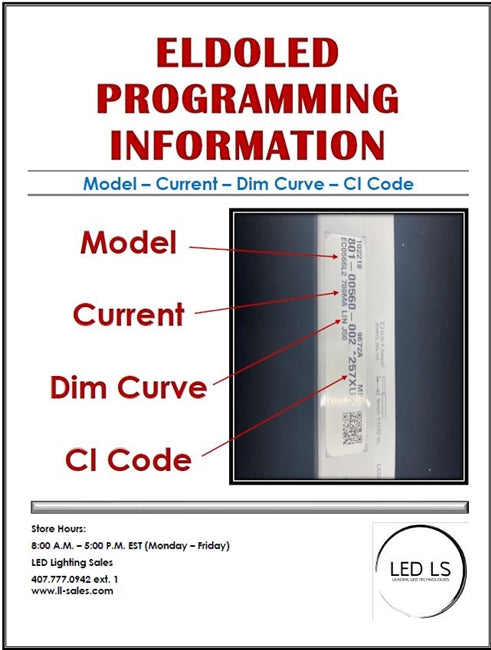

Click on image above to locate CI Code
Free shipping on orders over $350.
eldoLED ECOdrive 561/B Constant Current LED Driver
Description
Description
The eldoLED ECOdrive 561/B is a 50-Watt 0–10V LED driver designed for smooth, flicker-free dimming down to 1%. Its bottom-feed terminals make installation quick and easy, and its square metal/plastic form factor fits seamlessly into a variety of fixtures. This driver is ideal for commercial, architectural, and camera-sensitive lighting applications, delivering high efficiency, low THD, and reliable performance.
Key Features
-
Smooth and natural dimming to 1% light output
-
Bottom-feed terminals for easy installation
-
Square metal/plastic form factor
-
Single LED output: 1x 55V
-
0–10V compatible, programmable to fit any application
-
Low inrush current and total harmonic distortion (THD)
-
High power factor and efficiency
-
Proven camera-friendly dimming with Hybrid HydraDrive technology
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Part Number | EC0561B3 |
| Driver type | constant current |
| LED outputs | 1 (UL Class 2) |
| LED output power | 50W max |
| Programmable LED output current range | 150-1,400mA |
| LED output current resolution | programmable in 1mA steps |
| LED output voltage range | 2-55V |
| Standby power | <0.5W |
| Input voltage AC | 120-277V (UL) |
| Input current | 0.7A max |
| Inrush current | negligible: 30mA²s @ 277V |
| Surge protection | 2kV DM, 2kV CM |
| Efficiency @ full load | 88% |
| Efficiency @ 2/3 load | ≥84% |
| Power factor @ full load | >0.9C |
| THD @ full load | <20% |
| Dimming protocol | 0-10V |
| Control channels | 1 |
| Ta operating range | -20 °C ... +50 °C / -4 °F ... +122 °F |
| Tc max | 75 °C / 167 °F |
| Tc lifetime | 74 °C / 165 °F |
| Lifetime @ Tc lifetime | 50,000 hours |
| Type TL | @1400mA: Tref 57 °C, max 72 °C / 134 °F, max 161 °F |
| Warranty | 3 years |
