eldoLED ECOdrive 561/S Constant Current LED Driver
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 1%

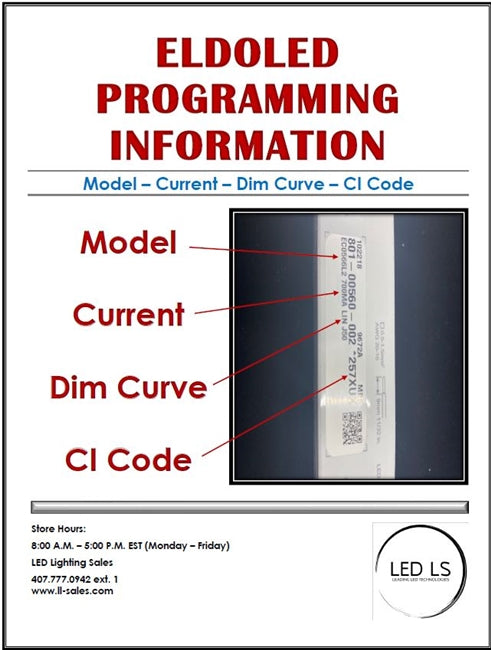

Click on image above to locate CI Code
Free shipping on orders over $350.
eldoLED ECOdrive 561/S Constant Current LED Driver
Description
Description
The ECOdrive 561/S is a 50W constant current LED driver designed for smooth, efficient, and reliable performance. With a single control channel and 0-10V compatibility, it offers precise dimming control and flexible configuration for a wide range of LED modules and arrays.
Its side feed terminals make installation quick and easy, while the durable square metal housing ensures a compact and long-lasting design. The driver provides low inrush current, minimal total harmonic distortion, and a high power factor, making it ideal for professional lighting applications.
Key Features:
-
Smooth and natural dimming to 1% for precise lighting control
-
Side feed terminals for easy installation
-
Durable square metal form factor
-
1x 55V output
-
0-10V compatible
-
Programmable LED output to fit your application
-
Low inrush current and minimal total harmonic distortion
-
High power factor and efficiency
-
50,000-hour lifetime with a 3-year warranty
The ECOdrive 561/S combines performance, flexibility, and longevity in a compact digital LED driver, delivering reliable lighting control for both commercial and residential projects.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Part Number | EC0561S3 |
| Driver type | constant current |
| LED outputs | 1 (UL Class 2) |
| LED output power | 50W max |
| Programmable LED output current range | 150-1,400mA |
| LED output current resolution | programmable in 25mA steps |
| LED output voltage range | 2-55V |
| Standby power | <0.5W |
| Input voltage AC | 120-277V (UL) |
| Input current | 0.7A max |
| Inrush current | negligible: 30mA²s @ 277V |
| Surge protection | 2kV DM, 2kV CM |
| Efficiency @ full load | 88% |
| Efficiency @ 2/3 load | ≥84% |
| Power factor @ full load | >0.9C |
| THD @ full load | <20% |
| Dimming protocol | 0-10V |
| Control channels | 1 |
| Ta operating range | -20 °C ... +50 °C / -4 °F ... +122 °F |
| Tc max | 75 °C / 167 °F |
| Tc lifetime | 74 °C / 165 °F |
| Lifetime @ Tc lifetime | 50,000 hours |
| Type TL | @1400mA: Tref 57 °C, max 72 °C / 134 °F, max 161 °F |
| Warranty | 3 years |
