eldoLED ECOdrive 565/L 50W DALI-2 LED Driver
Description
Description

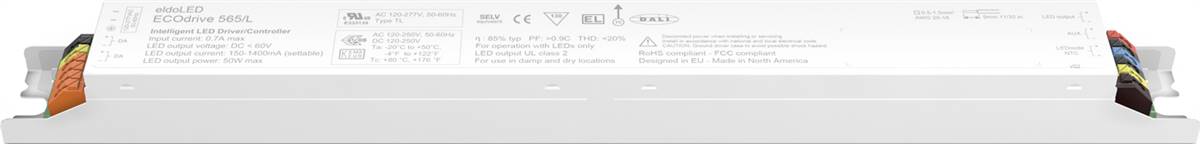

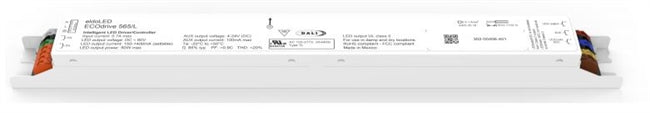

eldoLED ECOdrive 565/L – 50W DALI-2 LED Driver
The eldoLED ECOdrive 565/L is a high-performance 50-Watt LED driver engineered for seamless dimming and reliable operation in professional lighting applications. Designed with DALI-2 certification and advanced HydraDrive technology, this driver ensures smooth, flicker-free dimming down to 1% light output, making it ideal for environments where precise lighting control is critical. Its long metal form factor and side-feed design provide flexible installation in a variety of LED fixtures.
Whether used in commercial, residential, or studio settings, the ECOdrive 565/L delivers exceptional interoperability with LED modules, in-luminaire intelligent devices, and digital accessories via LEDcode2, enabling wired and wireless IoT control. Programmable output current, adaptable dimming curves, and natural dimming characteristics make it perfect for any lighting scenario—from architectural accent lighting to camera-sensitive environments.
Key Features:
-
DALI-2 certified constant current driver for LED lighting
-
50W maximum output with 1 programmable control channel
-
Smooth flicker-free dimming to 1% light output
-
HydraDrive technology for camera-compatible lighting
-
LEDcode2 support for wired and wireless smart lighting control
-
Configurable dimming curves and minimum dimming levels
-
Universal AC input voltage range with low THD and high power factor
-
Side-feed, long metal form factor for easy installation
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Driver type | Constant current |
| Number of LED outputs | 1 |
| Maximum LED output power | 50W |
| Programmable LED output current range | 150 - 1400mA |
| LED output type | Programmable in 1mA increments within specified current range |
| LED output voltage range | 2 - 55V |
| Nominal input voltage range AC | 120 - 250V (ENEC), 120 - 277V (UL) |
| Nominal input voltage range DC | 120 - 250V |
| Control protocol | DALI-2 Device Type 6, LEDcode2 |
| Control channels | 1 |
| Length (L) typical | 320 mm / 12.6 in |
| Width (W) typical | 30 mm / 1.18 in |
| Height (H) typical | 26 mm / 1.02 in |
| Weight | 275 g |
