eldoLED ECOdrive 565/U 50W DALI-2 LED Driver
Description
Description

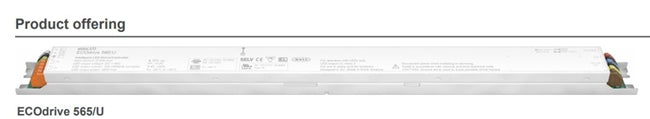

eldoLED ECOdrive 565/U – 50W DALI-2 LED Driver
The eldoLED ECOdrive 565/U is a 50-Watt DALI-2-certified LED driver engineered to deliver industry-leading dimming performance for LED lighting fixtures and applications. Featuring advanced HydraDrive technology, it provides standard LED fixtures with smooth, flicker-free dimming down to 1% light output, ensuring precise lighting control in professional environments. Its side-feed, long metal form factor allows for easy installation in a variety of LED configurations.
This driver offers seamless interoperability with LED modules, in-luminaire intelligent devices, and digital accessories via LEDcode2, enabling both wired and wireless smart lighting control. Programmable output current, adaptable dimming curves, and natural dimming characteristics make the ECOdrive 565/U suitable for architectural, commercial, and camera-sensitive lighting applications. Its universal input voltage range, low inrush current, and high efficiency ensure reliable operation across diverse lighting setups.
Key Features:
-
DALI-2 certified constant current driver for LED lighting
-
50W maximum output with 1 programmable control channel
-
Smooth flicker-free dimming down to 1% light output
-
HydraDrive technology compatible with TV and security camera environments
-
LEDcode2 support for smart, location-based IoT lighting control
-
Configurable dimming curves and minimum dimming levels
-
Universal AC input voltage with low THD and high power factor
-
Side-feed, long metal form factor for flexible installation
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Driver type | Constant current |
| Number of LED outputs | 1 (UL Class 2) |
| Maximum LED output power | 50W |
| Programmable LED output current range | 150 - 1400mA |
| LED output type | Programmable in 1mA increments within specified current range |
| LED output voltage range | 1.5 - 55V |
| Nominal input voltage range AC | 120 - 250V (ENEC), 120 - 277V (UL) |
| Nominal input voltage range DC | 120 - 250V |
| Control protocol | DALI-2 Device Type 6, LEDcode2 |
| Control channels | 1 |
| Length (L) typical | 444 mm / 17.48 in |
| Width (W) typical | 30 mm / 1.18 in |
| Height (H) typical | 21 mm / 0.83 in |
| Weight | 359 g |
