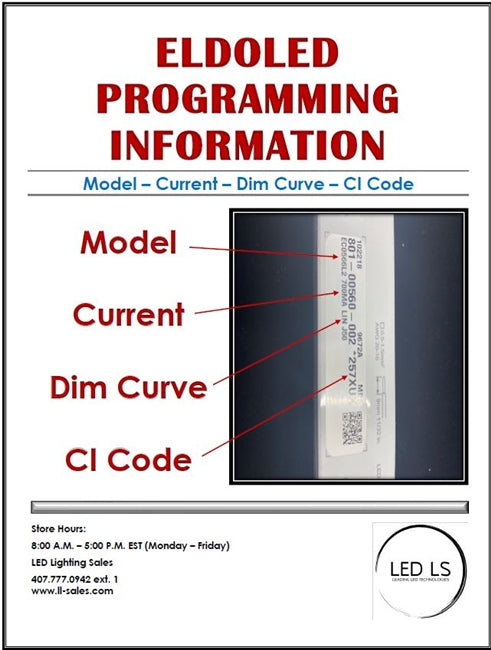

Click on image above to locate CI Code
Free shipping on orders over $350.
eldoLED ECOdrive 566/M Constant Current LED Driver
Description
Description

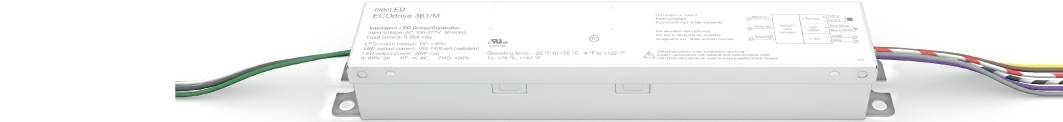

eldoLED ECOdrive 566/M – 50W 0–10V Programmable LED Driver
The eldoLED ECOdrive 566/M (EC0566M2) is a 50-Watt constant current LED driver designed for commercial and architectural lighting applications. It delivers smooth, natural dimming down to 1% using 0–10V control, providing flicker-free performance suitable for camera-sensitive environments. The long metal form factor and flying leads simplify installation, making it a versatile solution for professional lighting systems.
This driver features programmable output current, high efficiency, and low total harmonic distortion, ensuring reliable operation across a wide range of LED fixtures. Its 1x 55V output and auxiliary power capabilities make it adaptable to a variety of lighting scenarios, while built-in surge protection and thermal management safeguard both the driver and connected LEDs.
Key Features:
-
Smooth and natural dimming to 1%
-
Flying leads for ease of installation
-
Long metal form factor
-
1x 55V output
-
0–10V compatible
-
Programmable output to fit application needs
-
Low inrush current and low THD
-
High power factor and efficiency
-
3-year warranty
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Part Number | EC0566M2 |
| Driver type | Constant current |
| LED outputs | 1 (UL Class 2) |
| LED output power | 50W max |
| Programmable LED output current range | 150–1,400mA |
| LED output current resolution | Programmable in 25mA steps |
| LED output voltage range | 2–55V |
| Standby power | <0.5W |
| Input voltage AC | 120–277V (UL) |
| Input current | 0.7A max |
| Inrush current | Negligible: 30mA²s @ 277V |
| Surge protection | 2kV DM, 2kV CM |
| Efficiency @ full load | 88% |
| Efficiency @ 2/3 load | ≥84% |
| Power factor @ full load | >0.9C |
| THD @ full load | <20% |
| Dimming protocol | 0–10V |
| Control channels | 1 |
| Operating temperature (Ta) | -20°C … +50°C / -4°F … +122°F |
| Maximum case temperature (Tc max) | 75°C / 167°F |
| Lifetime case temperature (Tc lifetime) | 74°C / 165°F |
| Lifetime @ Tc lifetime | 50,000 hours |
| Type TL @ 1400mA | Tref 57°C, max 72°C / 134°F, max 161°F |
| Warranty | 3 years |
