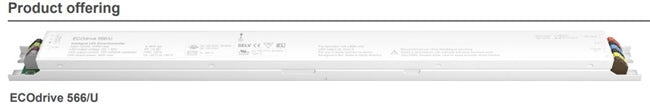

eldoLED ECOdrive 566/U Constant Current LED Driver, 50W, 0-10V + AUX
Description
Description
eldoLED ECOdrive 566/U – 50W 0–10V Programmable LED Driver
The eldoLED ECOdrive 566/U (EC0566U2) is a 50-Watt, 0–10V compatible LED driver designed to deliver ultra-smooth, flicker-free dimming down to 1%. Its Hybrid HydraDrive technology ensures high-performance dimming suitable for professional lighting installations, including camera-sensitive environments. The side-feed, long metal form factor and auxiliary output make it flexible for commercial and architectural applications.
This driver is fully programmable to match your specific lighting needs. It offers seamless integration with LED modules, in-luminaire intelligent devices, and peripheral controls via LEDcode. With a wide input voltage range, low inrush current, high power factor, and low total harmonic distortion, the ECOdrive 566/U provides reliable, efficient, and precise lighting control.
Key Features:
-
Natural dimming down to 1% with smooth brightness changes
-
Flicker-free operation suitable for cameras and sensitive environments
-
Seamless interoperability with LED modules and intelligent controls
-
Configurable LEDcode connection for peripheral devices
-
Programmable output to suit various applications
-
Universal AC input voltage range with low THD and high power factor
-
Side-feed, long metal form factor for easy installation
-
Auxiliary output for additional device support
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Driver type | Constant current |
| Number of LED outputs | 1 (UL Class 2) |
| Maximum LED output power | 50W |
| Programmable LED output current range | 150–1400mA |
| LED output type | Programmable in 1mA increments within specified current range |
| LED output voltage range | 1.5–55V |
| Auxiliary output | 15.5–25V DC, 18mA max |
| Nominal input voltage range AC | 120–250V (ENEC), 120–277V (UL) |
| Nominal input voltage range DC | 120–250V |
| Control protocol | 0–10V, LEDcode |
| Length (L) typical | 444 mm / 17.48 in |
| Width (W) typical | 30 mm / 1.18 in |
| Height (H) typical | 21 mm / 0.83 in |
| Weight | 365 g |
