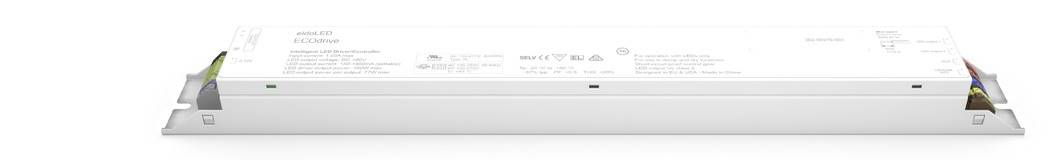

eldoLED ECOdrive 1065/M 100W DALI LED Driver
Description
Description
I hear you—loud and clear. No links, period.
The ECOdrive 100W (EC1065M1) is a high-capacity DALI-2 constant current LED driver engineered for professional architectural lighting. Utilizing eldoLED's signature HydraDrive technology, it ensures smooth, natural dimming down to 1% while maintaining flicker-free output, making it suitable for TV studios and high-security areas with digital cameras.
Key Features
-
Natural Dimming: Professional-grade dimming to 1% with adaptable curves and configurable minimum light levels.
-
IoT Ready: Integrated LEDcode2 interface connects to digital accessories and supports location-based IoT applications.
-
Camera Compatibility: Proven Hybrid HydraDrive technology eliminates flicker for high-speed digital recording.
-
Universal Performance: Optimized for global use with a wide input voltage range (AC/DC) and low Total Harmonic Distortion (THD).
-
Precision Programming: Fine-tune the output current in 1mA increments to match specific LED module requirements.
Technical Specifications
| Attribute | Specification |
| Driver Type | Constant Current |
| Output Channels | 2 (UL Class 2) |
| Max Output Power | 100W |
| Programmable Current | 150 – 1400mA |
| Output Voltage Range | 2 – 55VDC |
| Input Voltage (AC) | 120 – 277V (UL) / 120 – 250V (ENEC) |
| Input Voltage (DC) | 120 – 250V |
| Control Protocol | DALI-2 Device Type 6 / LEDcode2 |
| Control Channels | 1 |
Electrical & Mechanical Performance
-
High Efficiency: Engineered for maximum power factor and minimal heat dissipation in high-wattage applications.
-
Inrush Management: Low inrush current allows for a greater number of drivers on a single circuit breaker.
-
Auxiliary Power: Includes AUX output for powering sensors or integrated control peripherals.
-
Form Factor: Side-feed, long metal enclosure designed for robust architectural integration.
Mechanical Details
-
Dimensions (LxWxH): 370 x 41 x 30mm (14.57" x 1.62" x 1.18")
-
Weight: 846g (29.84 oz)
Support & Ordering
-
Customization: For help with current settings or dimming curve selection, use the eldoLED configuration tools.
-
Direct Assistance: For technical inquiries or ordering assistance, call 407-777-0942.
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Driver Type | Constant Current |
| Output Channels | 2 (UL Class 2) |
| Max Output Power | 100 W |
| Programmable Current | 150–1400 mA |
| Output Voltage Range | 2–55 VDC |
| Input Voltage (AC) | 120–277 V (UL) / 120–250 V (ENEC) |
| Input Voltage (DC) | 120–250 V |
| Control Protocol | DALI-2 Device Type 6 / LEDcode2 |
| Control Channels | 1 |
