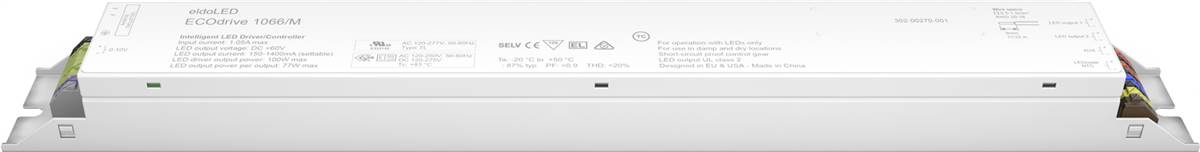

eldoLED ECOdrive 1066/M Constant Current LED Driver, 100W, 0-10V
Please type the current output the driver is programmed to ex. "500MA"
Most 0/10V Systems prefer a "LIN" dim curve
Default is 1%
Click on image above to locate CI Code
Free shipping on orders over $350.
eldoLED ECOdrive 1066/M Constant Current LED Driver, 100W, 0-10V
Description
Description
The eldoLED ECOdrive 1066/M is a 100W, 0-10V compatible LED driver with an auxiliary output, designed to deliver smooth, flicker-free dimming down to 1%. With constant current outputs, it ensures high-performance, precise control over LED modules and arrays. The driver features programmable output currents, LEDcode connectivity, and natural dimming curves, making it ideal for demanding applications including TV studios, security camera environments, and intelligent luminaire systems.
Highlights:
-
ECOdrive, 100W, 0-10V + AUX
-
1 control channel, constant current
-
2 × 55V LED outputs
-
Side feed, long metal form factor
-
Natural dimming to 1%, smooth brightness changes
-
LEDcode for integration with peripheral controls
-
High efficiency, low THD, high power factor
-
Camera-friendly, flicker-free performance
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Driver Type | Constant Current |
| LED Outputs | 2 (UL Class 2) |
| Max LED Output Power | 100 W |
| Programmable LED Current | 150–1400 mA (1 mA increments) |
| LED Output Voltage Range | 2–55 V |
| Input Voltage (AC) | 120–250 V (ENEC), 120–277 V (UL) |
| Input Voltage (DC) | 120–250 V |
| Control Protocol | 0–10V, LEDcode |
| Control Channels | 1 |
| Dimensions (L×W×H) | 370 × 41 × 30 mm (14.57 × 1.62 × 1.18 in) |
| Weight | 846 g |
