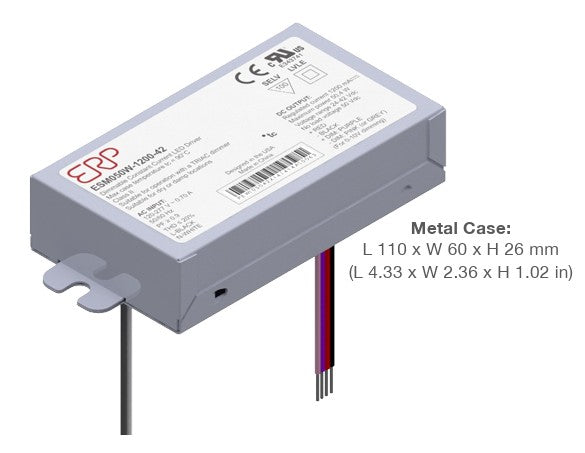

ESM050W-1050-42 Constant Current LED Driver
Regular price
$40.00
Unit price
Unavailable
Description
Description
The ERP Power ESM050W-1050-42 is a 50W constant current LED driver delivering 1050mA output with Tri-Mode dimming compatibility. It provides reliable performance and flexible control for commercial and architectural lighting systems.
Key Features
- 50W constant current LED driver
- 1050mA fixed output
- Tri-Mode dimming compatibility

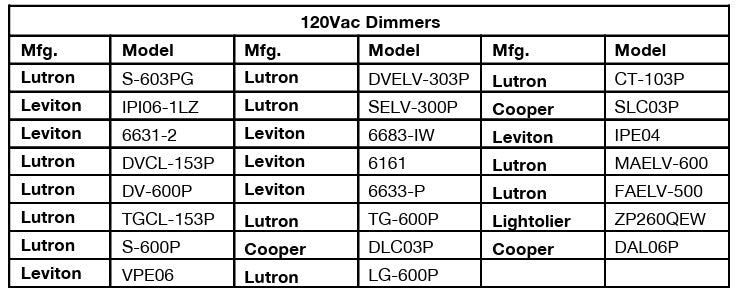

- Supports phase and 0-10V controls
- Designed for commercial lighting applications
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Brand | ERP Power |
| Product Code | ESM050W-1050-42 |
| Input Voltage | 120–277VAC |
| Input Frequency | 50/60Hz |
| Max Output Power | 50W |
| Output Current Range | 1050mA |
| Output Voltage Range | 24–42VDC |
| Efficiency | Up to 88% |
| Power Factor | ≥0.95 |
| THD | <20% |
| Inrush Current | <30A |
| Operating Temperature | -20°C to +50°C |
| Case Temperature (Tc) | 85°C max |
| Output Protection | Short circuit, overload, thermal |
| Dimming Control | Tri-Mode |

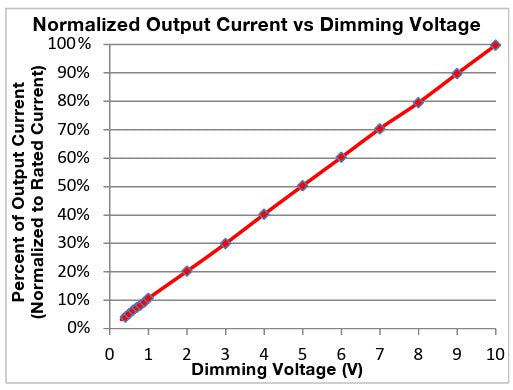

| Dimming Range | 1% – 100% |
| Advanced Features | Universal dimming compatibility |
| Enclosure Rating | IP20 |

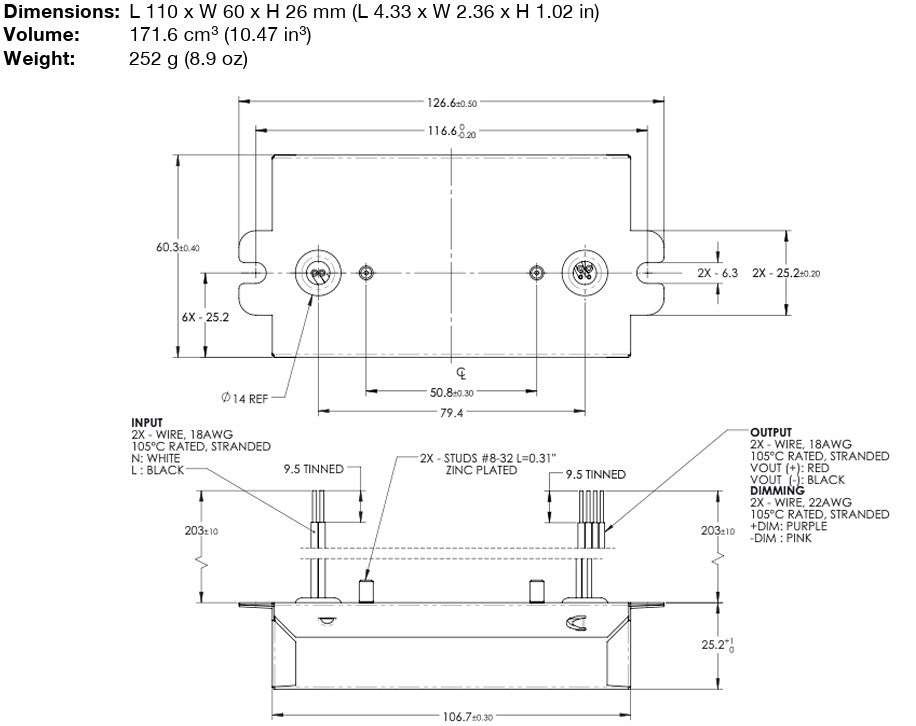

| Dimensions | ~6.3" x 1.7" x 1.1" |
| Mounting Length | ~5.8" |
| Certifications & Compliance | UL, FCC, RoHS |
| Sound Rating | Class A |
| Warranty | 5 Years |
| Sound Rating | Class A |
| Warranty | 5 Years |
