ESP060W-1400-42 Constant Current LED Driver
Regular price
$43.00
Unit price
Unavailable
Description
Description
The ERP Power ESP060W-1400-42 is a 60W constant current LED driver delivering 1400mA output with Tri-Mode dimming capability. It is designed for higher-output fixtures requiring flexible dimming control.
Key Features
- 60W constant current LED driver
- 1400mA fixed output
- Tri-Mode dimming compatibility
- Suitable for higher power fixtures
- Reliable commercial performance
Specifications
Specifications
| Attribute | Specification |
|---|---|
| Brand | ERP Power |
| Product Code | ESP060W-1400-42 |
| Input Voltage | 120–277VAC |
| Input Frequency | 50/60Hz |
| Max Output Power | 60W |
| Output Current Range | 1400mA |
| Output Voltage Range | 24–42VDC |
| Efficiency | Up to 89% |
| Power Factor | ≥0.95 |
| THD | <20% |
| Inrush Current | <35A |
| Operating Temperature | -20°C to +50°C |
| Case Temperature (Tc) | 90°C max |
| Output Protection | Short circuit, overload, thermal |

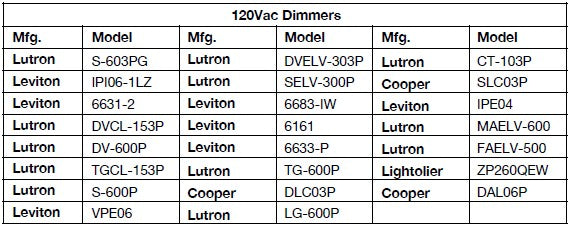

| Dimming Control | Tri-Mode |

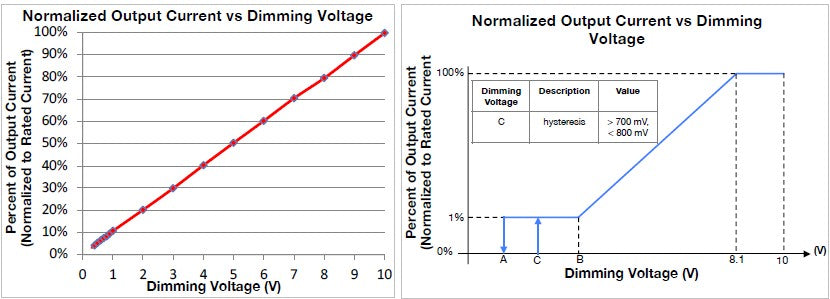

| Dimming Range | 1% – 100% |
| Advanced Features | High output performance |
| Enclosure Rating | IP20 |

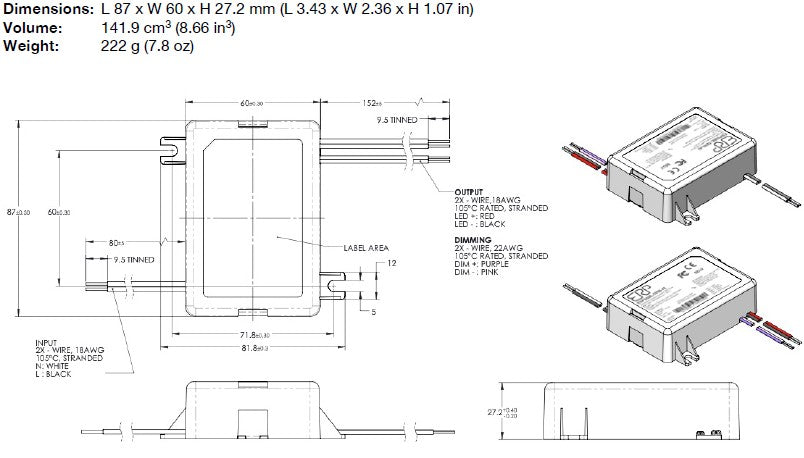

| Dimensions | ~7.5" x 1.9" x 1.2" |
| Mounting Length | ~7.0" |
| Certifications & Compliance | UL, FCC, RoHS |
| Sound Rating | Class A |
| Warranty | 5 Years |
| Sound Rating | Class A |
| Warranty | 5 Years |
